Features:

• Measurement Flexibility (Configuration)
• 6-slot modular system Mainframe/Measurement Module Compatibility Table
• Supports timing/state analyzers and pattern generator Measurement Modules
• PCI expansion slots: 1 full profile, 1 low profile
• Use frame individually or connect together for complex, multi-bus analysis E5861A Multiframe Cable

User Interface

• Uses external display
• Intuitive user interface and familiarity of Windows XP Pro
• Data views: waveform/chart, listing, packet viewer, source code, compare
• Keyboard and mouse supplied

Connectivity

• LAN: 10/100 BaseT (optional Gbit LAN) E5860A Gbit LAN Card
• I/O Ports: Two USB 1.1, parallel, serial, external video, calibration BNC, Clock in BNC
• Interface to other instruments: Trigger In/Out, Target control port
• View Scope integrates time-correlated logic analyzer & scope waveforms into single, waveform display

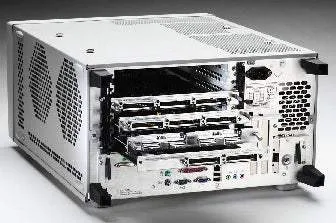

The Keysight 16900A logic analysis system provides high-performance, system-level debugging of digital designs. Expandability is the key to the system´s long-term value. Customize this system for your specific needs with innovative probing, high-performance measurement modules, and post-processing analysis tools.
