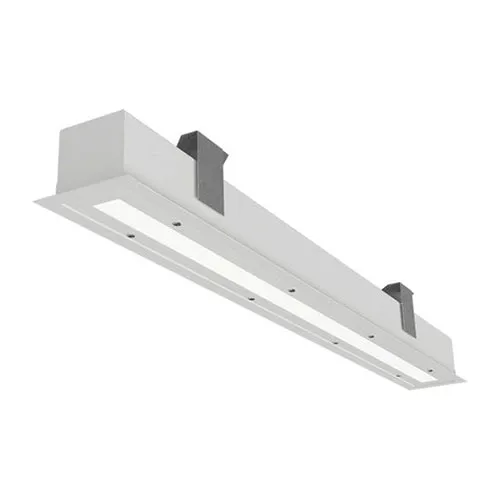

Advantage Environmental Lighting MBHDL Behavioral Health Linear Luminaire

The MBHDL is a recessed flanged high abuse luminaire, designed for behavioral healthcare applications. Sealed and gasketed, the MBHDL provides an IP65 rating.

Construction

Constructed of .063" aluminum with an alumium mud-flange and frame. Torx head with center-pin fasteners included standard.

Ligature Resistance

Provides ligature resistance when installed in sheetrock/ drywall utilizing a tamperproof security sealant/pickproof security caulk.

Mounting

Suitable for sheetrock/ drywall installation. Recessed housing, conduit entry.

LEDs

High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70).

Optics

High impact clear polycarbonate lens provides impact resistance, while satin inner lens offers excellent LED diffusion and light output.

Driver

0-10V dimming driver included standard. Driver options available for 1% dimming, Lutron EcoSystem, and DALI.

Finish

Matte white finish standard. Custom finish options are available in various RAL colors.

Options

• Various options are available. If additional or custom options are needed, consult factory.
• The MBHDL is a recessed flanged high abuse luminaire, designed for behavioral healthcare applications. Sealed and gasketed, the MBHDL provides an IP65 rating.

Construction

Constructed of .063" aluminum with an alumium mud-flange and frame. Torx head with center-pin fasteners included standard.

Ligature Resistance

Provides ligature resistance when installed in sheetrock/ drywall utilizing a tamperproof security sealant/pickproof security caulk.

Mounting

Suitable for sheetrock/ drywall installation. Recessed housing, conduit entry.

LEDs

High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70).

Optics

High impact clear polycarbonate lens provides impact resistance, while satin inner lens offers excellent LED diffusion and light output.

Driver

0-10V dimming driver included standard. Driver options available for 1% dimming, Lutron EcoSystem, and DALI.

Finish

Matte white finish standard. Custom finish options are available in various RAL colors.

Options

Various options are available. If additional or custom options are needed, consult factory.

Highlights

• Ligature resistant1
• High efficacy and lifespan LEDs
• Sheetrock/Drywall Installation
• High abuse lens/frame
• IP65, Sealed/Gasketed
