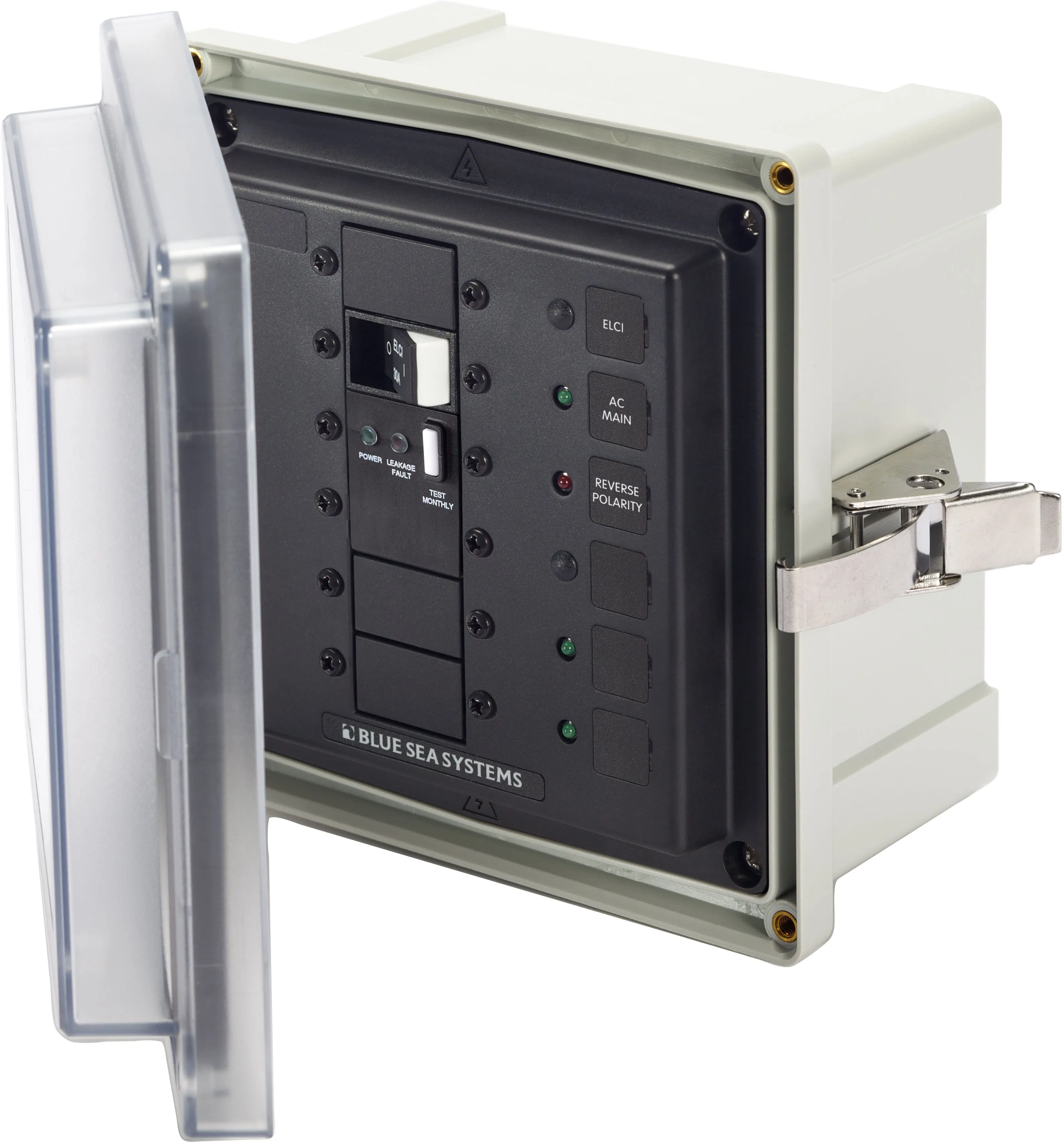

Blue Sea Panel Enclosure 120v AC 50A ELCI Main Surface Mount System

Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 50A ELCI Main - 2 blank circuit positions

• Includes one 120V AC / 50A ELCI Main and two blank positions


• Blank apertures for custom breaker loading


• Glass filled polycarbonate mounting box


• Clear cover allows easy view of circuit breaker status


• Overlapping cover for strength and increased gasket protection


• Oversized, formed in place seamless PUR gasket


• Easily removable stainless steel hinge pin for unobstructed installation


• Stainless steel latch secures cover without penetrating the enclosure


• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers


• Stainless steel mounting hardware included


• Includes waterproof glands


• LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Minimum Operating Temperature
-40° C

Maximum Operating Temperature
85° C

Cover Screws and Hardware
10-32 Stainless Steel

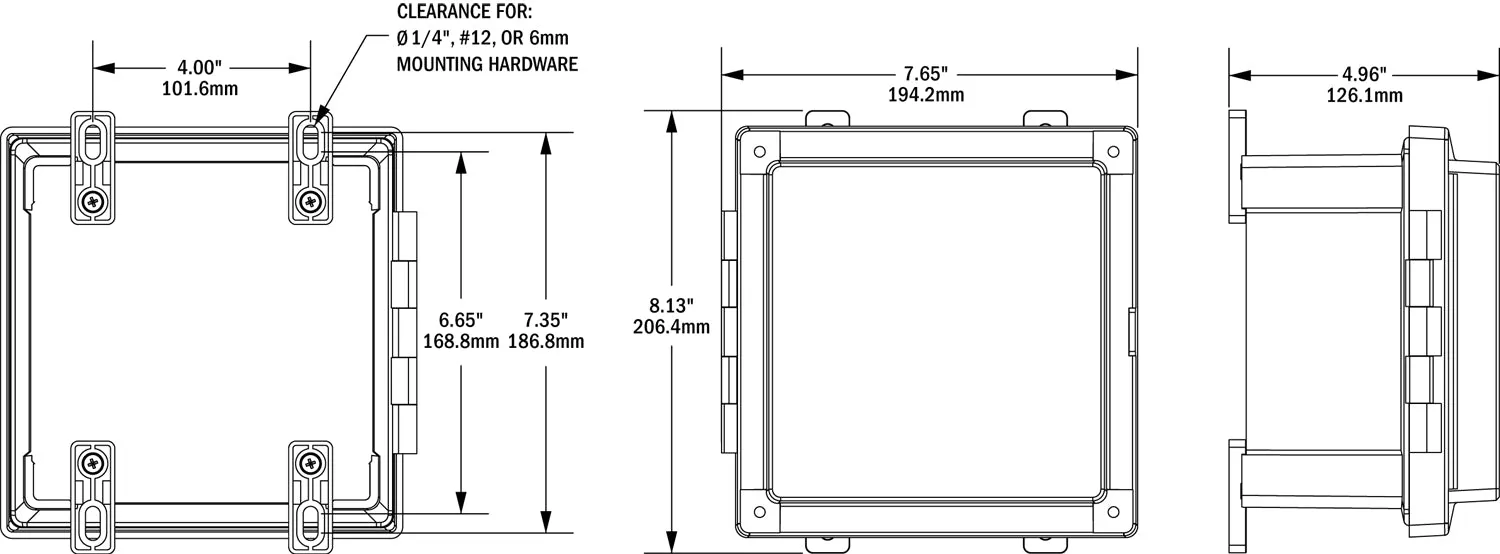

Enclosure Size
6.0" x 6.0" x 4.0"

Exterior Overall Dimensions
7.6" x 7.4" x 4.7"

Mounting Hardware
1/4" Diameter, #12 (6 mm)

Weight
7.00lb (3.18 kg)

What's in the Box:

• SMS Panel Enclosure


• ELCI Main 120V 50A, 30mA, 3103


• small wire glands, 3124 x 2


• medium wire gland, 3125


• large wire glands, 3126 x 2


• green "ON" indicating 120V AC LEDs, 8034 x 3


• red "Reverse Polarity" indicating 120V AC LED, 8066


• LED plugs x 2


• circuit breaker mounting screws x 12


• backlit circuit label positions x 5


• AC Main label


• Reverse Polarity label


• ELCI label


• Basic AC labels, 4206


• Panel Voltage ID label-120V AC
