Overview

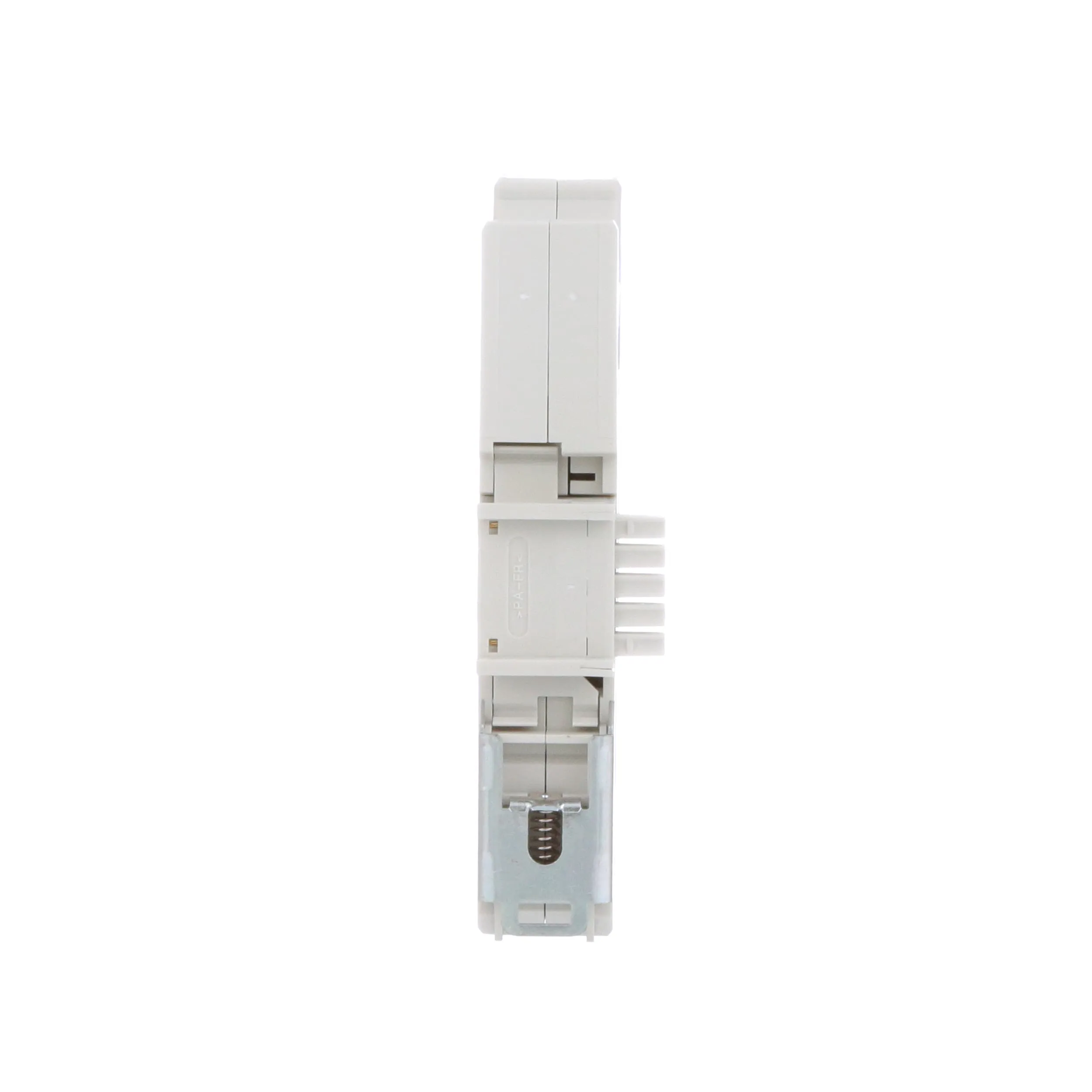

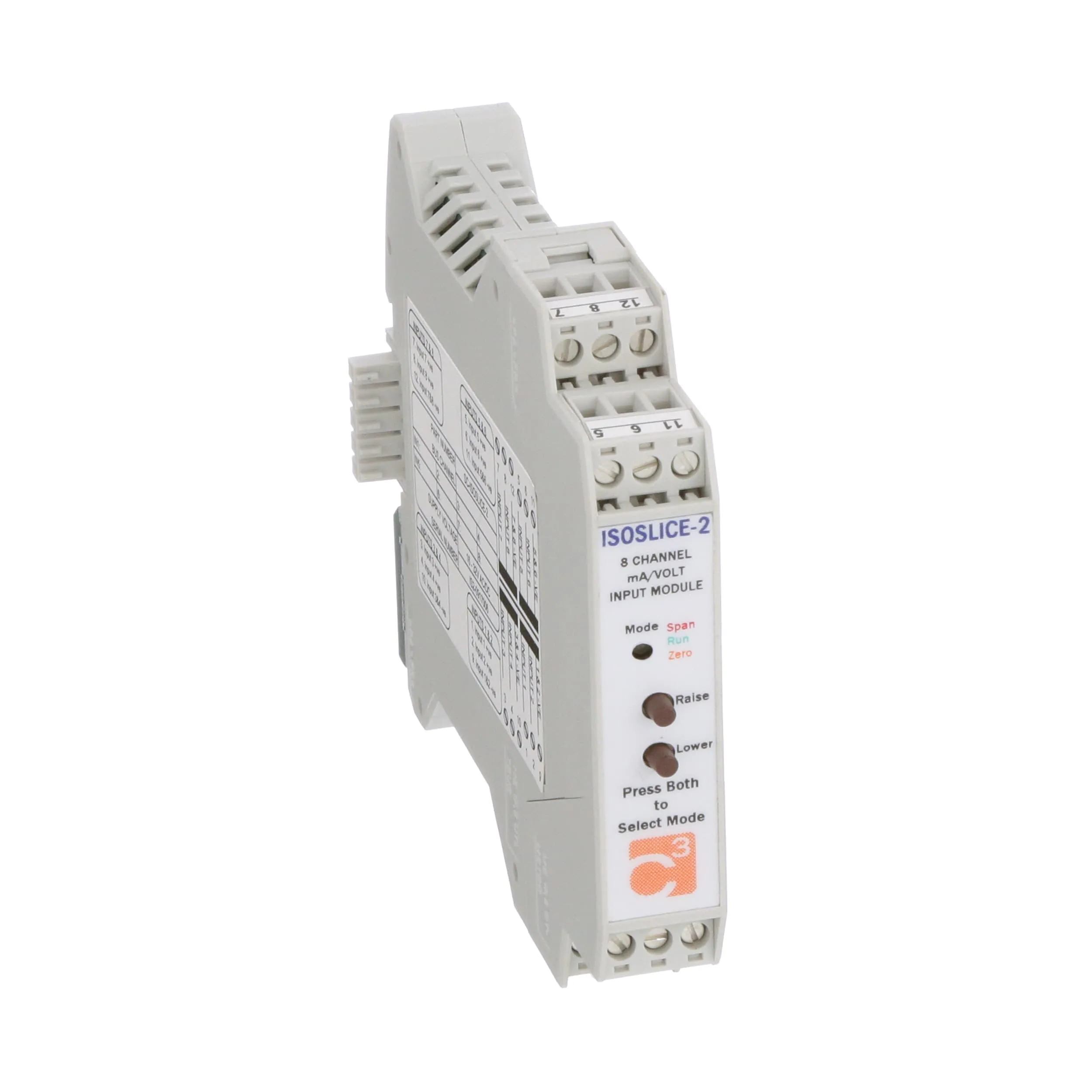

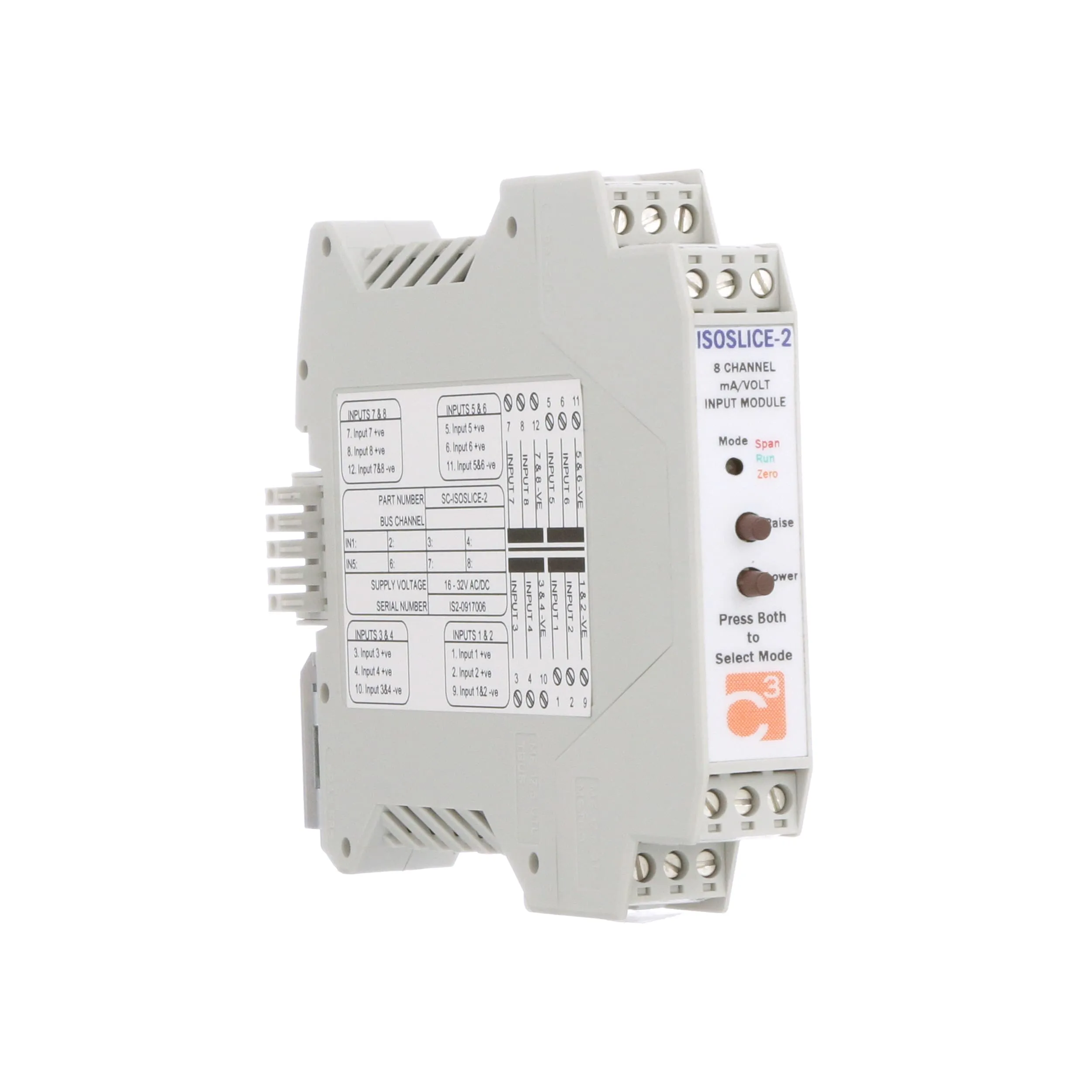

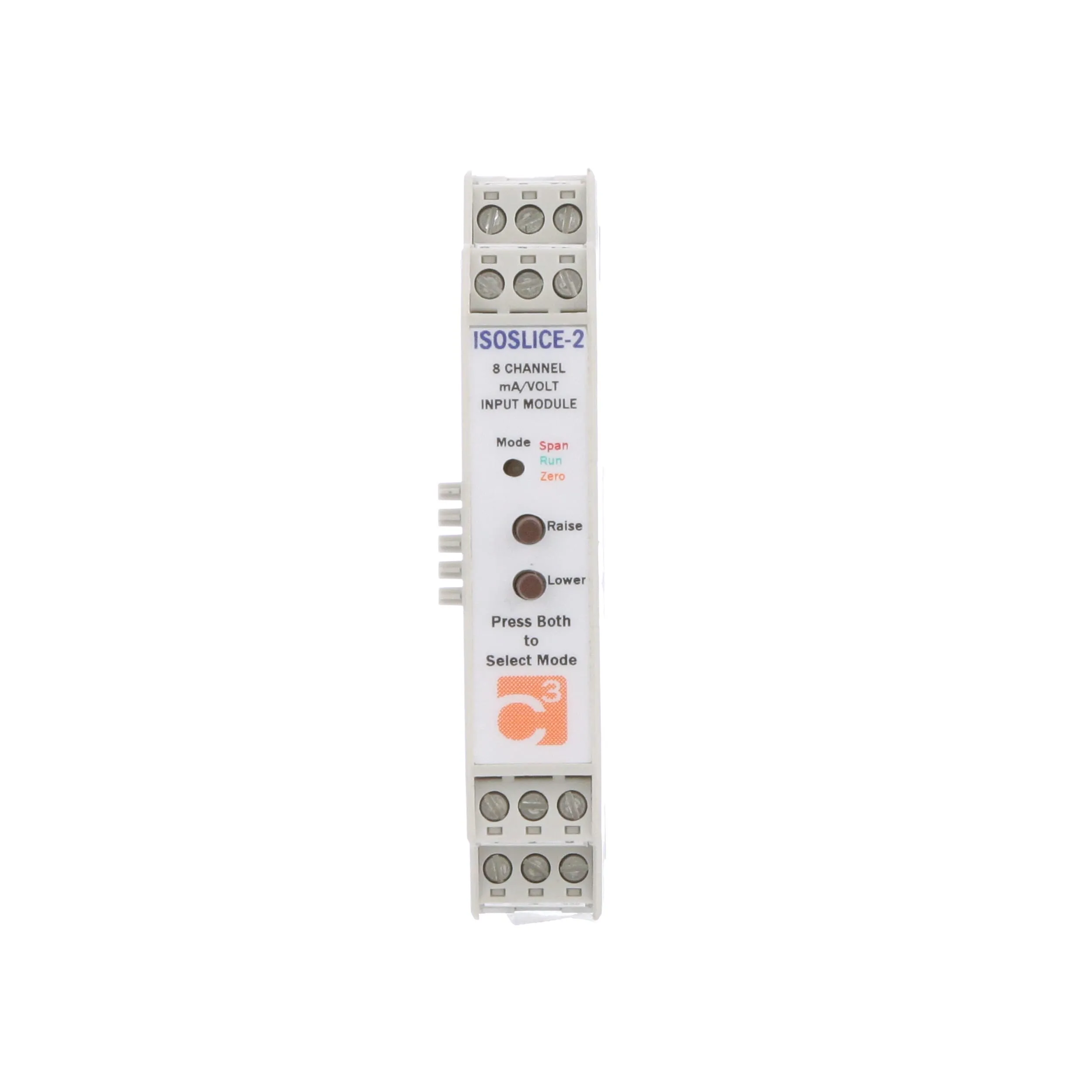

The SC-ISOSLICE-2 isolated Bus I/O module combines full three-port isolation with access to an industrial bus. This bus connects to the SC-E-100 modules which are then used to transmit the process values via either an Ethernet or a RS232/485 wired communications network.
Full 3 port isolation is standard but for channel to channel isolation please see the SC- ISOSLICE-1

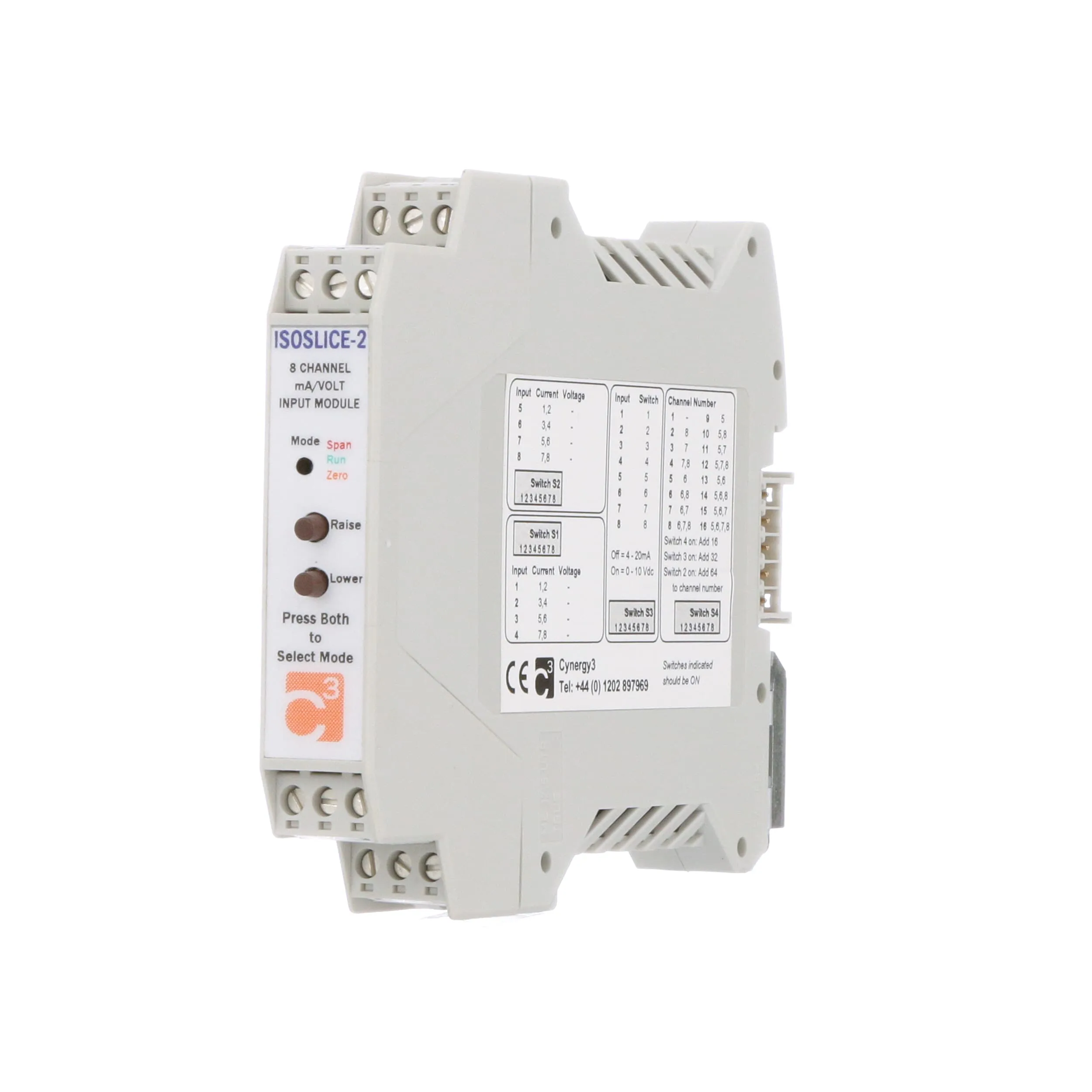

The input type and range can be user selected using simple DIL switches inside the unit and the unit is factory calibrated for 4-20mA and 0-10V inputs.
Non-interactive zero and span controls make adjustment and calibration of the unit quick and simple.
The units have a wide ranging 12 to 36 Vdc. This supply can either be wired to the appropriate terminals or picked up automatically from the Bus connector.

Features:
