Overview

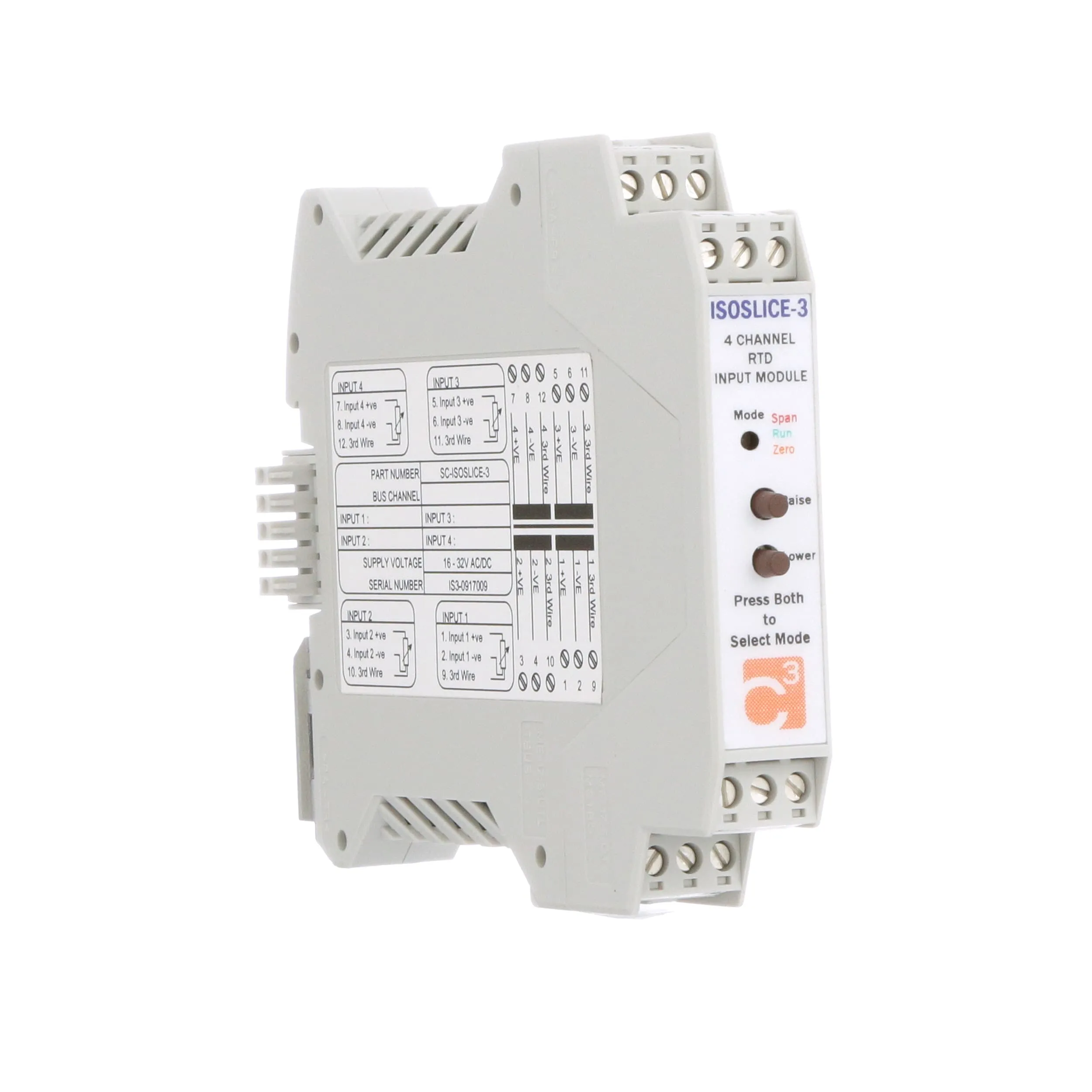

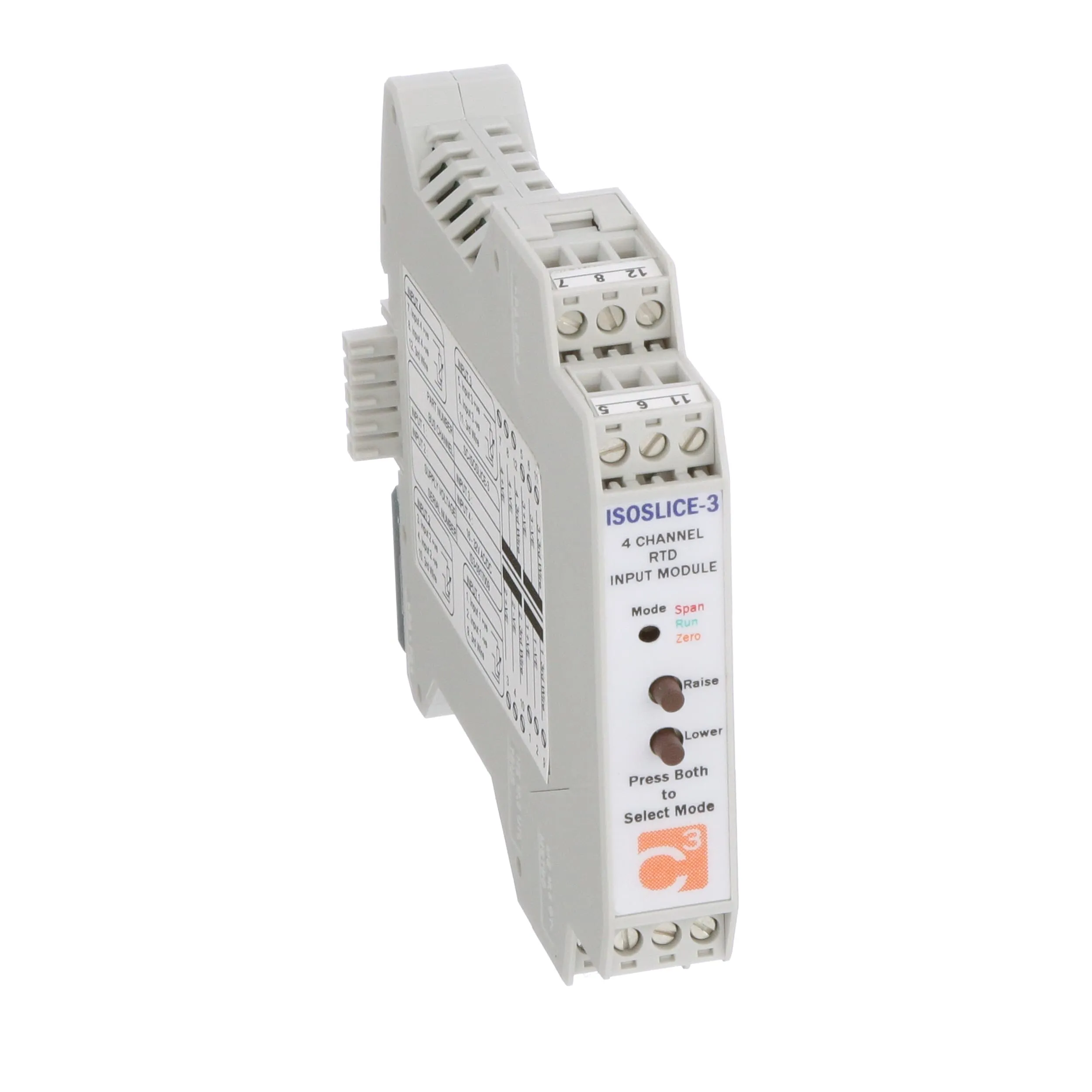

The SC-ISOSLICE-3 isolated Bus I/O module combines full three-port isolation with access to an industrial bus. This bus connects to the E-100 modules which are then used to transmit the process values via either an Ethernet or a RS232/485 wired communications network.Full 3-port isolation is standard but for channel to channel isolation please see the SC-ISOSLICE-1

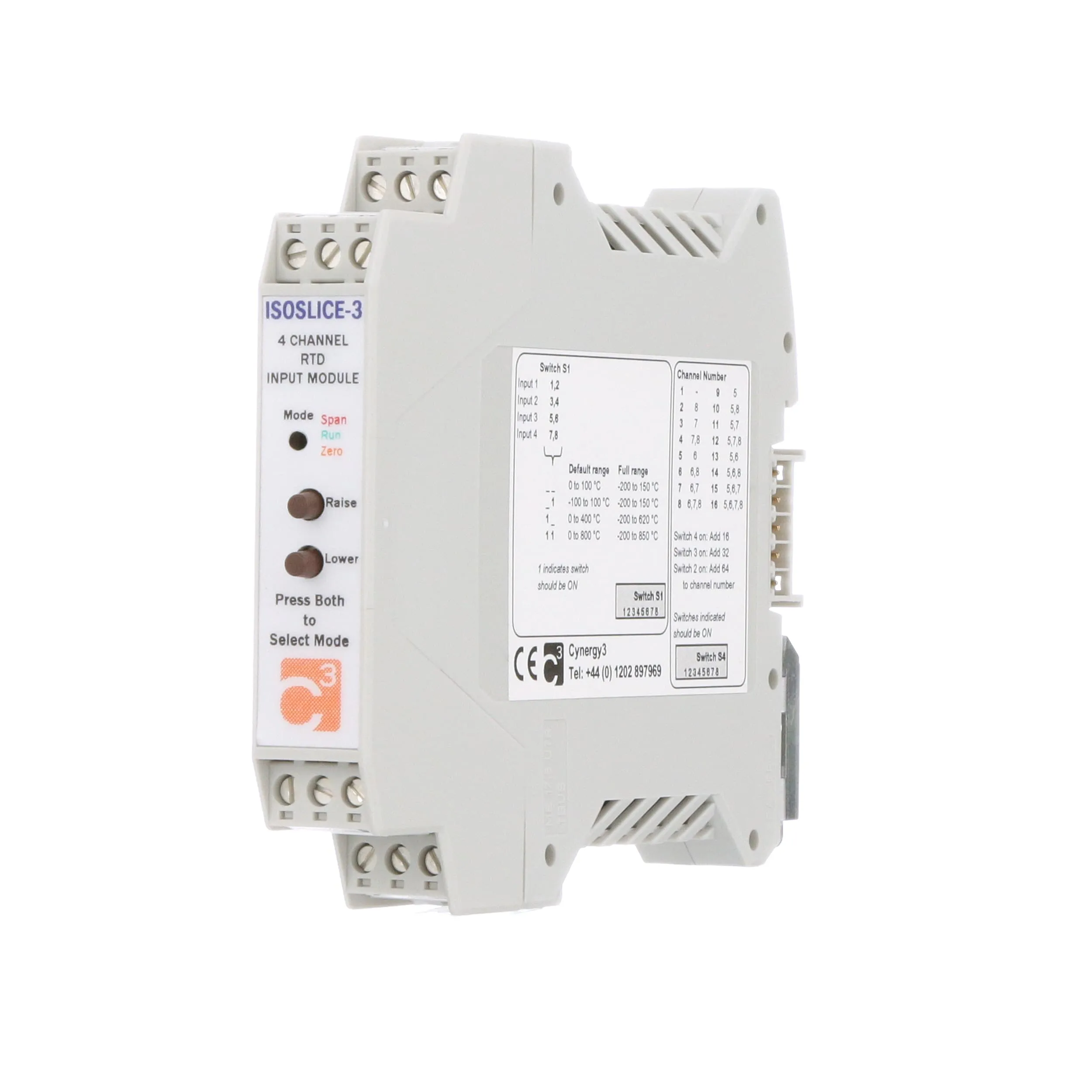

The input range can be user selected using simple DIL switches inside the unit and the unit is factory calibrated for four different input ranges. These are 0 to 100…C, -100 to 100…C, 0 to 400…C and 0 to 800…C.

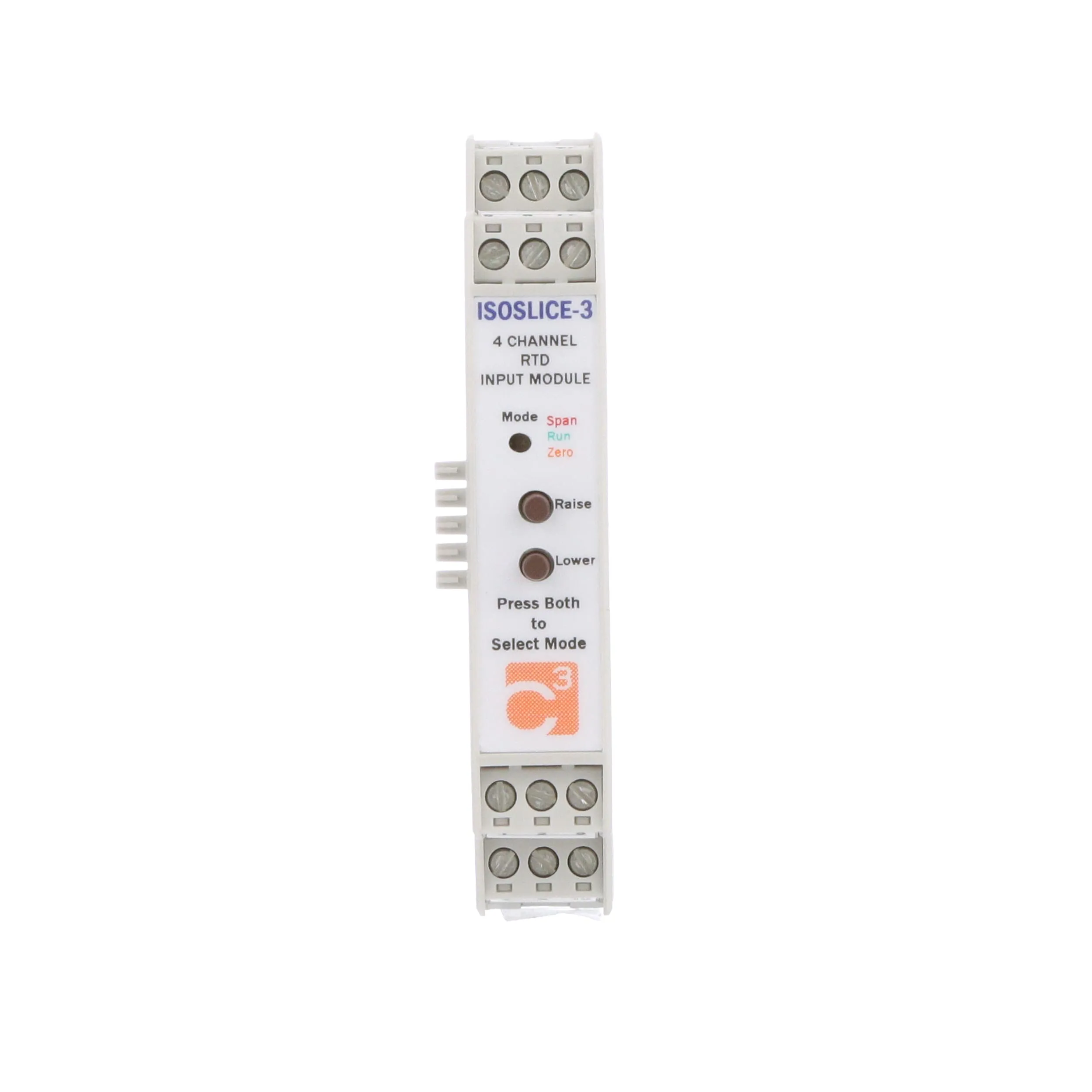

Non-interactive zero and span controls make adjustment and calibration of the unit quick and simple.
The units have a wide ranging 12 to 36 Vdc. This supply can either be wired to the appropriate terminals or picked up automatically from the Bus connector.
