Overview

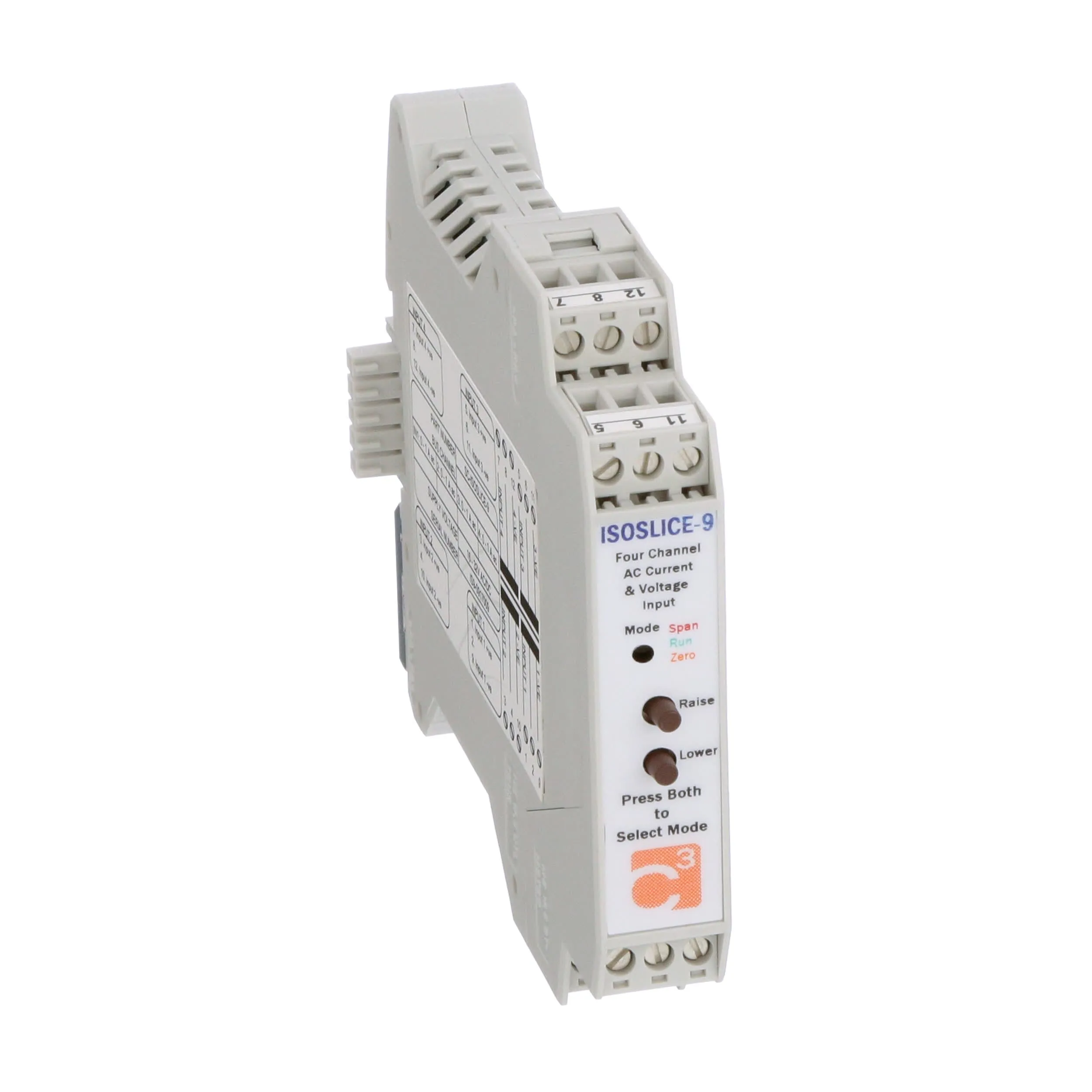

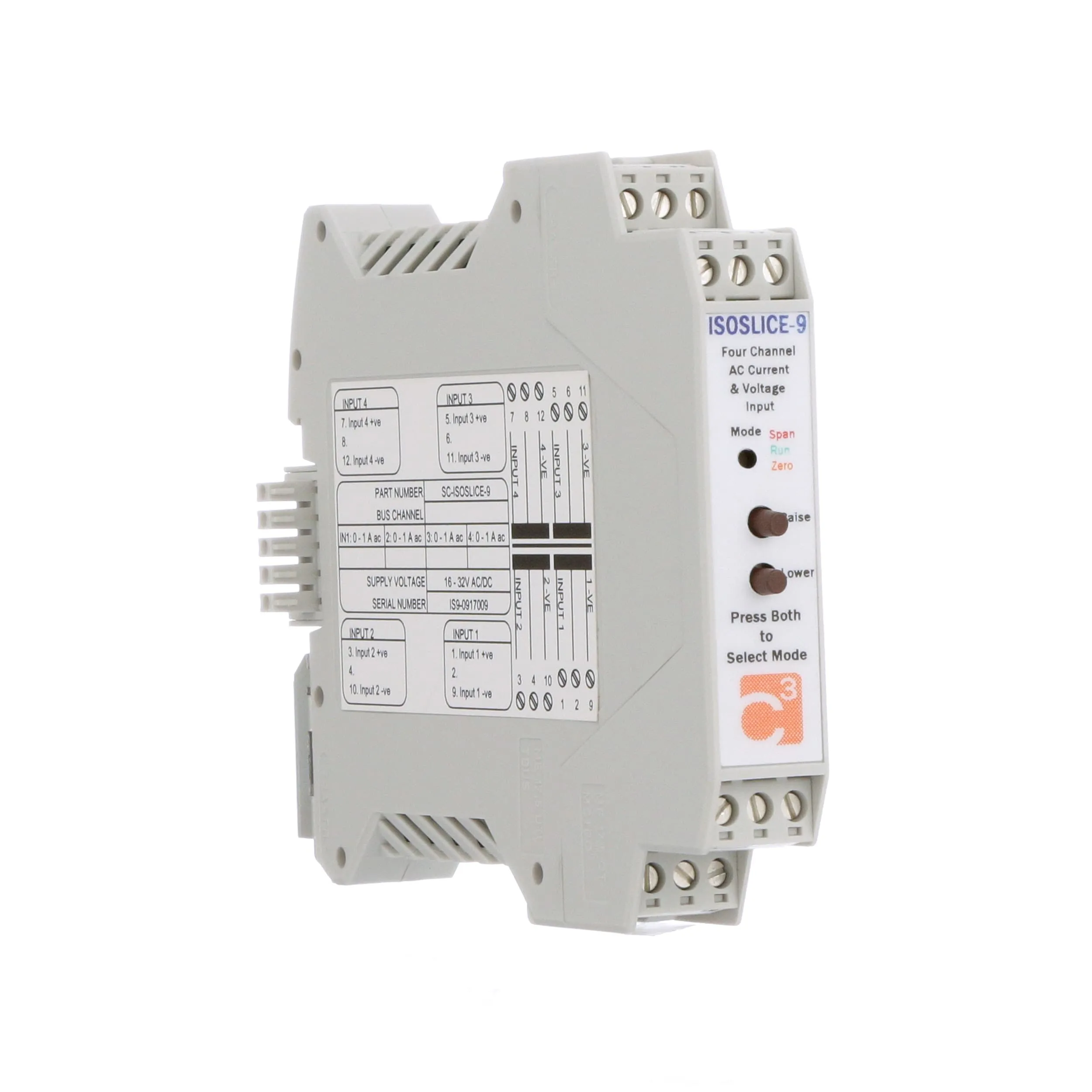

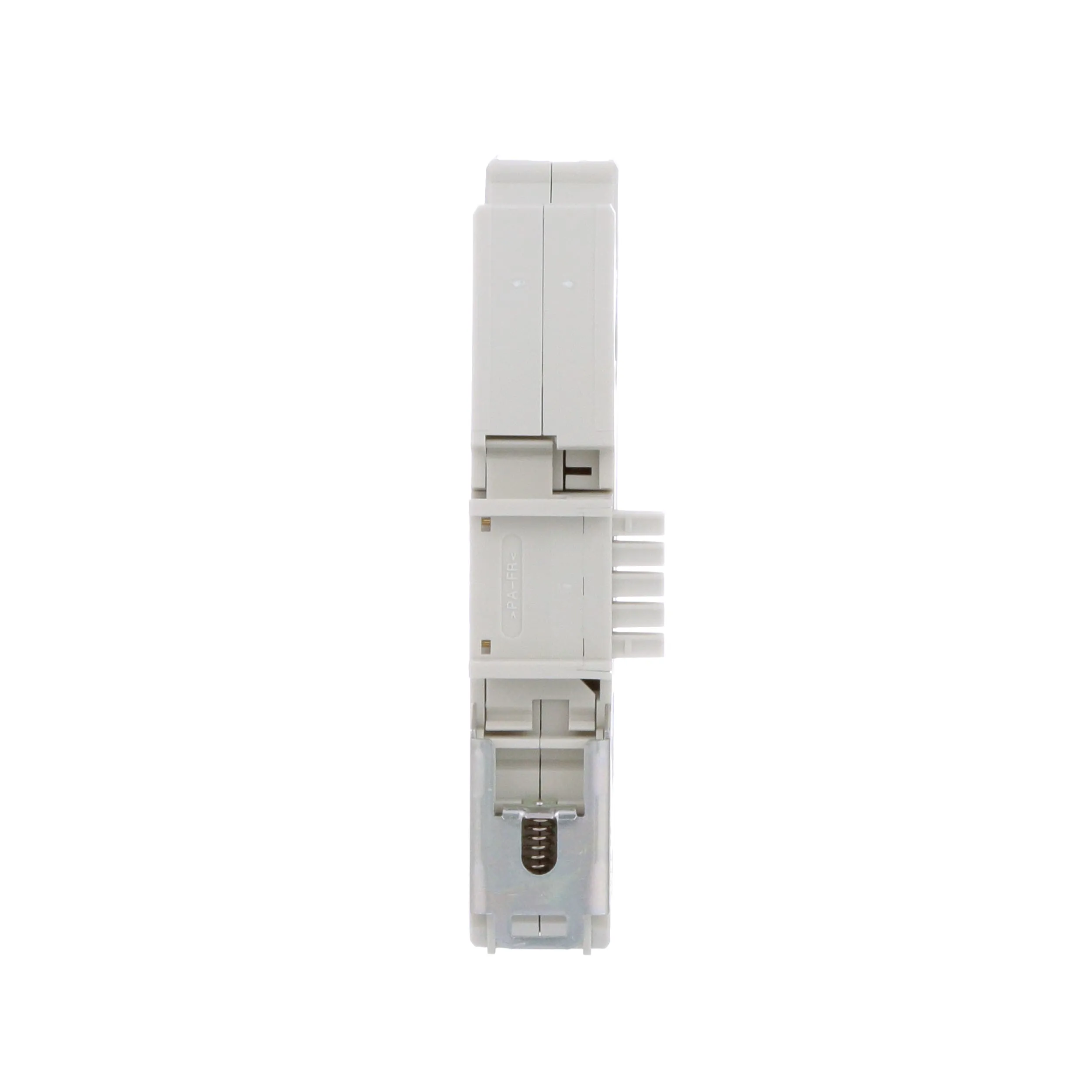

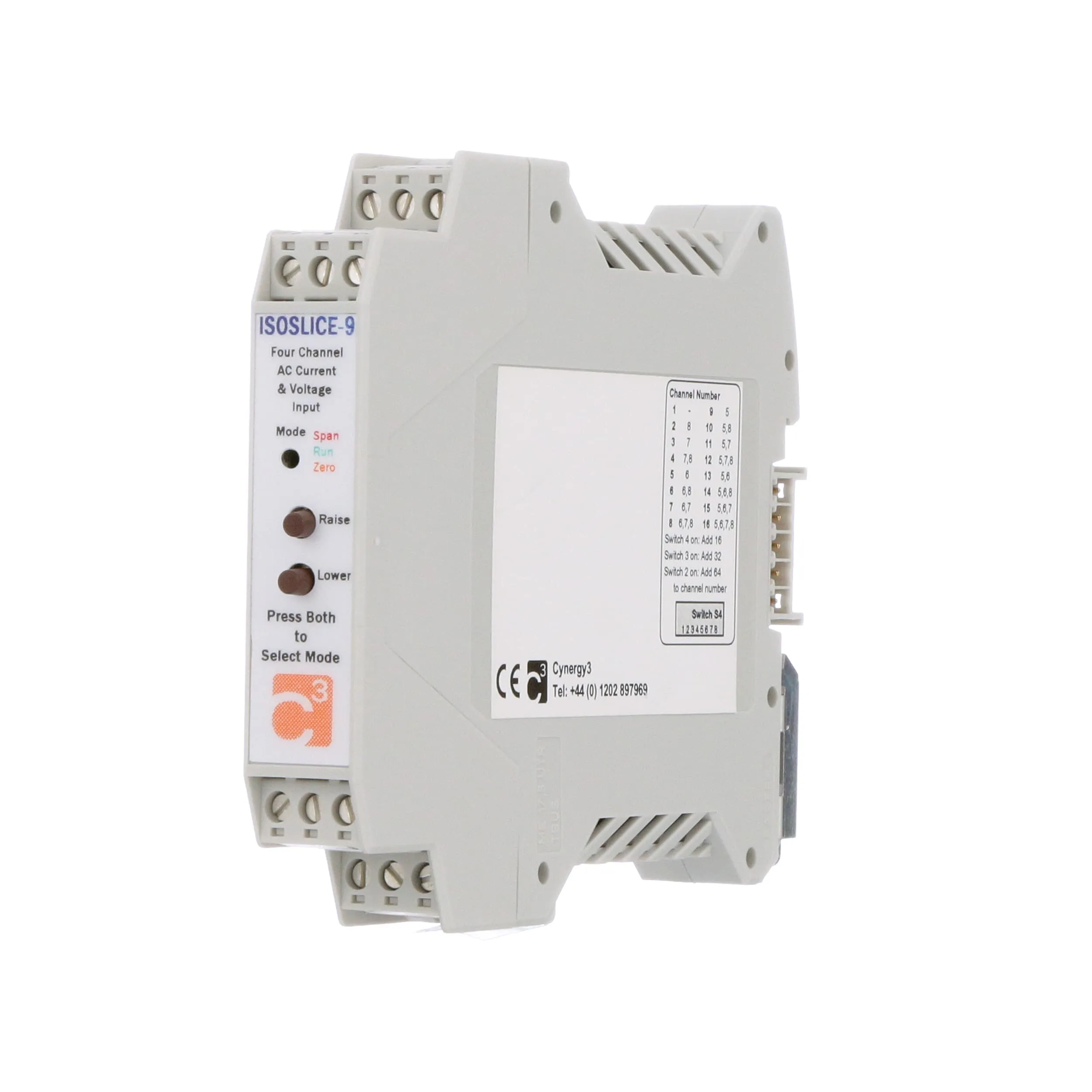

The SC-ISOSLICE-9 isolated Bus I/O module combines full three-port isolation with access to an industrial bus. This bus connects to the SC-E-100 modules which are then used to transmit the process values via either an Ethernet or a RS232/485 wired communications network. Full 3-port isolation is standard. The SC-ISOSLICE-9 is designed to accept current inputs from Current Transformers with current outputs.

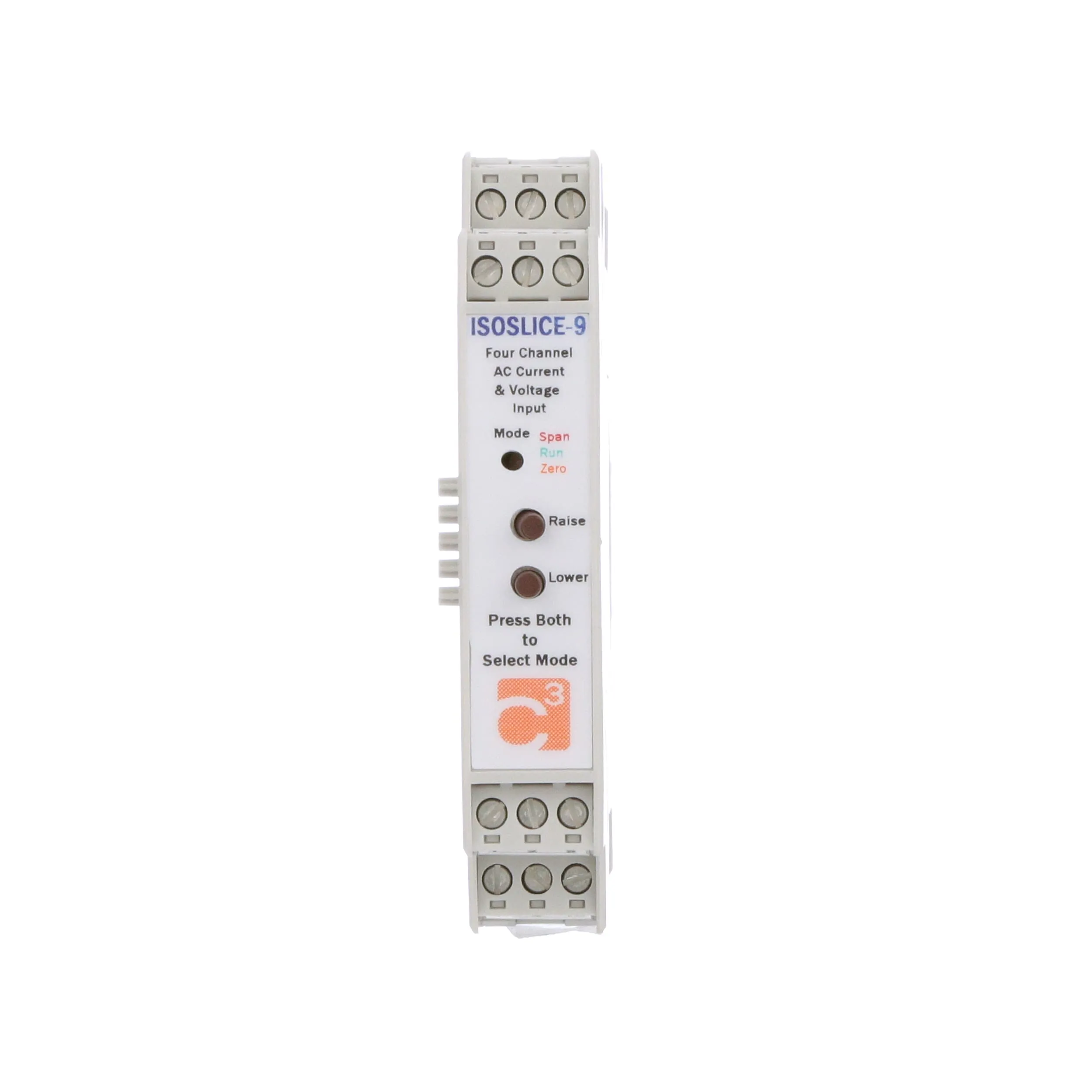

Non-interactive zero and span controls make adjustment and calibration of the unit quick and simple.
The units have a wide ranging 12 to 36 Vdc. This supply can either be wired to the appropriate terminals or picked up automatically from the Bus connector.

Features:
