Features:

• 3-slot cardcage with 6-1/2 digit (22 bit) internal DMM scanning up to 450 channels per second with new solid-state multiplexer module
• 8 switch and control plug-in modules to choose from
• Built-in signal conditioning measures thermocouples, RTDs and thermistors, AC/DC volts and current; resistance, frequency/period, diode test and capacitance
• 100k readings of non-volatile memory holds data when power is removed
• Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs
• Measures very low current ranges (1 µA DC and 100 µA AC) and higher resistance (1000 MΩ)
• New auto-calibration compensates for internal drifts caused by time / temperature changes
• 34970A/34972A compatible program and configuration
• Updated modules have improved switching speeds and accuracies
• NEW DAQM900A solid state multiplexer with scan rate speed of up to 450 channels/sec
• NEW DAQM909A 24-bit digitizer module providing 4 channels, simultaneous sampling, differential inputs, and sample rates up to 800 kSa/s
• USB flash drive support to copy/log data in standalone applications
• LAN/LXI and USB for easy connectivity to your PC
• BenchVue DAQ application included
• Three-year warranty
• Sample More Signals, Faster

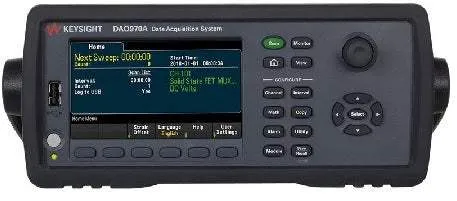

The DAQ970A is Keysight's next-generation data acquisition (DAQ) system with a 3-slot mainframe and your choice of 8 plug-in modules. Interface with the DAQ using optional Keysight BenchVue DAQ software, the intuitive graphical front panel with task oriented, self-guiding menus, or a web browser.
