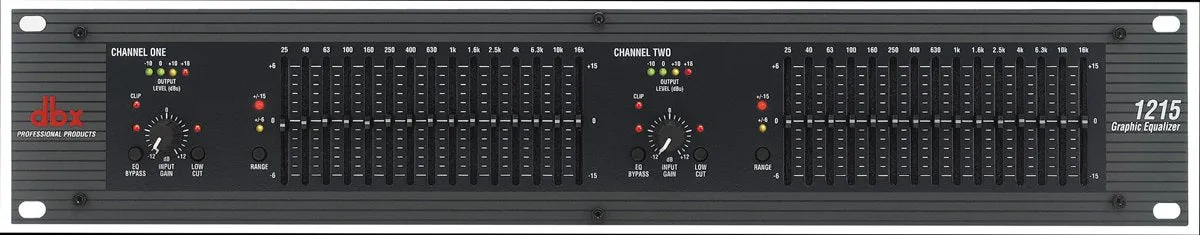

Dual 15 Band Equalizer Four segment LED bargraph for output level offers the most comprehensive visual feedback available. Status LEDs offer visual feedback for all settings on the front panel. Balanced 45 mm faders. XLR, TRS 1/4” connectors, plus barrier strip inputs and outputs.2/3 octave, 2U rack design

• Switchable boost/cut ranges of ±6 or ±15 dB
• Electronically balanced/unbalanced inputs
• Servo balanced/unbalanced inputs
• RF filtered inputs and outputs

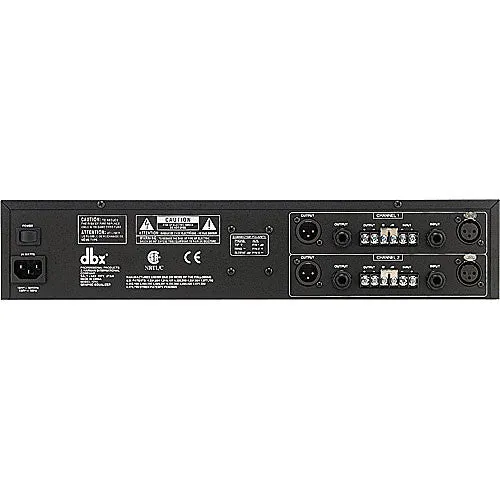

• XLR, Barrier Strip, and 1/4" TRS connectors
• -12dB/ 12dB input gain range
• 18dB/octave 40Hz Bessel low-cut filter
• Chassis/signal ground lift capability
• Internal power supply transformer
• Power-off hardwire relay bypass with 2-second power-up delay
