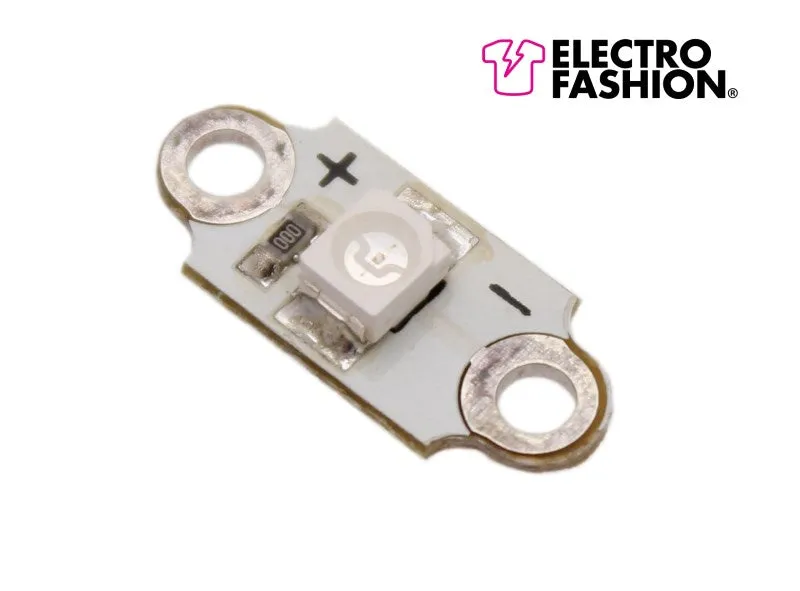

These ultra-slim, pre-mounted e-textile LEDs from Kitronik run off a 3V coin cell battery and are illuminated continuously when powered.

They have connections to which the conductive thread can be connected. These are clearly marked with ' ' and '-' to indicate which is positive and which is the negative connection.

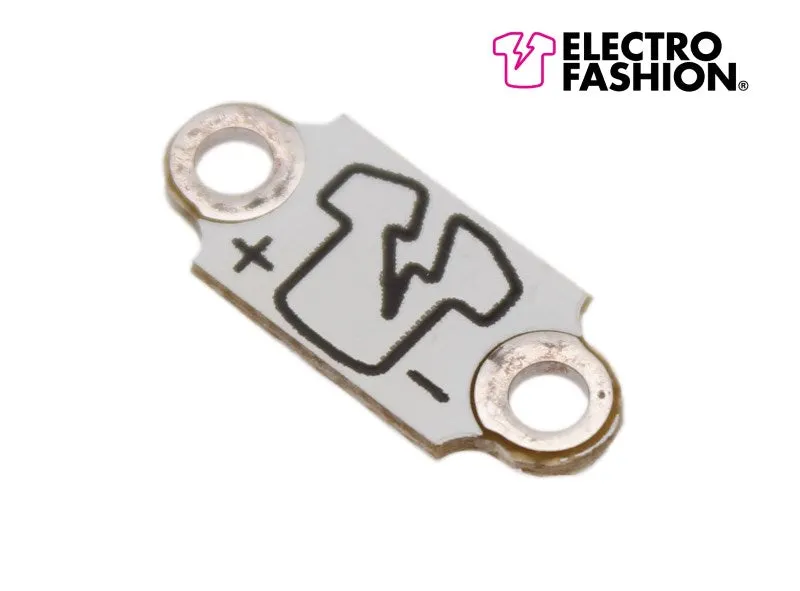

The PCBs are double sided making the conductive thread connection very reliable (see example picture below).

Features:

• Ultra Slim Sewable LEDs.
• Double-Sided PCBs for reliable connections.
• Clearly marked ' ' and '-' connections.

Contents:

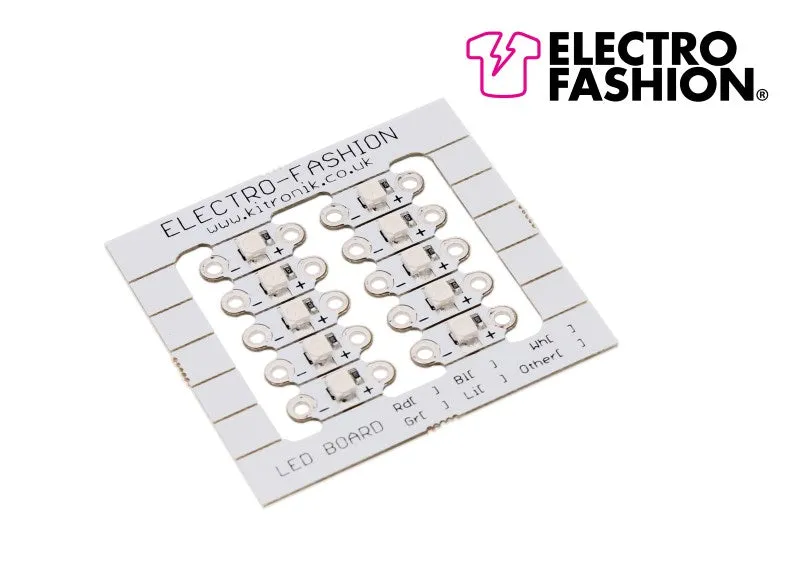

• Pack of 10 LEDs (supplied on a small panel, easily removed by snapping them out).

Dimensions:

• Length: 15mm.
• Width: 6.5mm.
• Height: 2.7mm.

Resources:

• .

Example Circuit:

For illustration only, not actual components provided.
