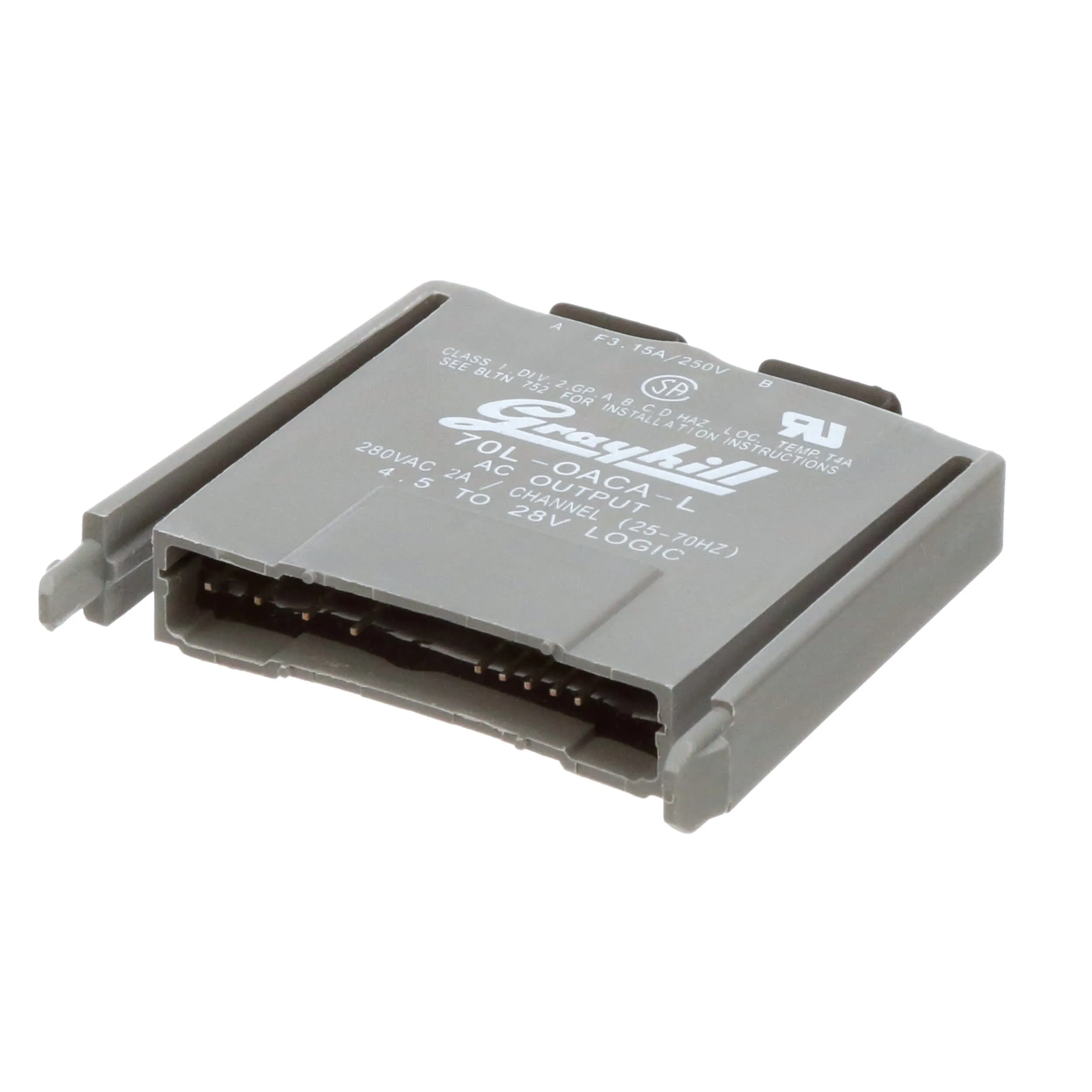

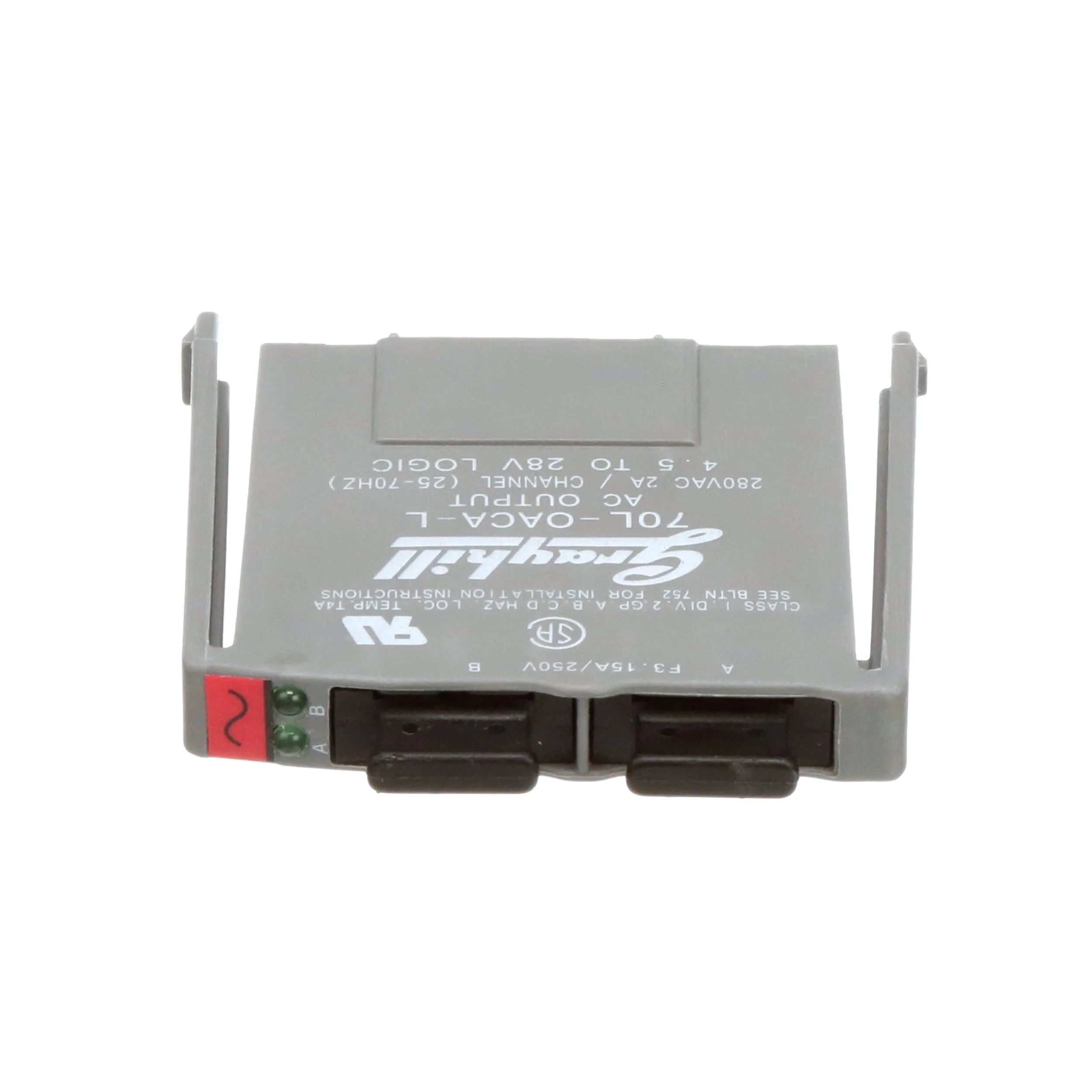

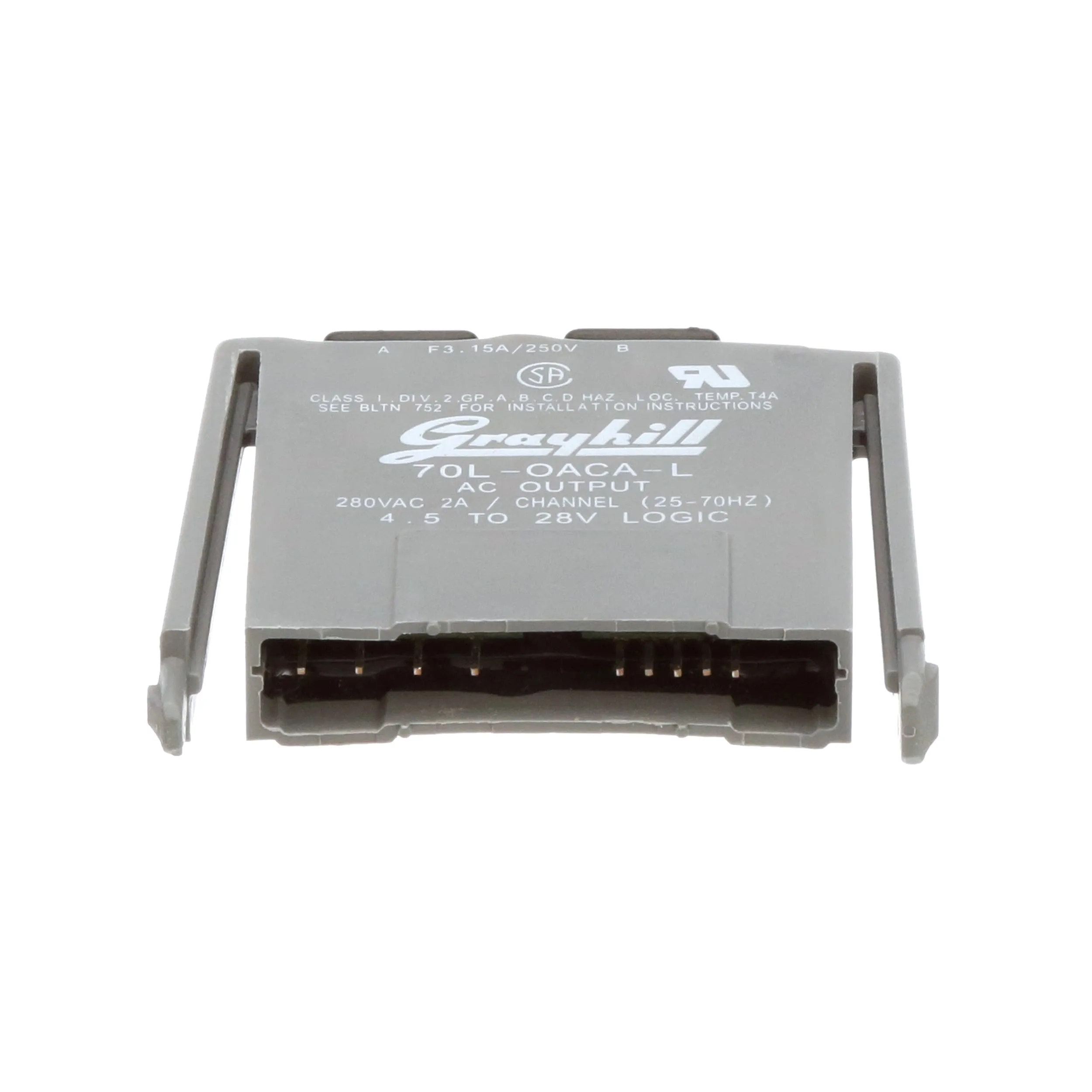

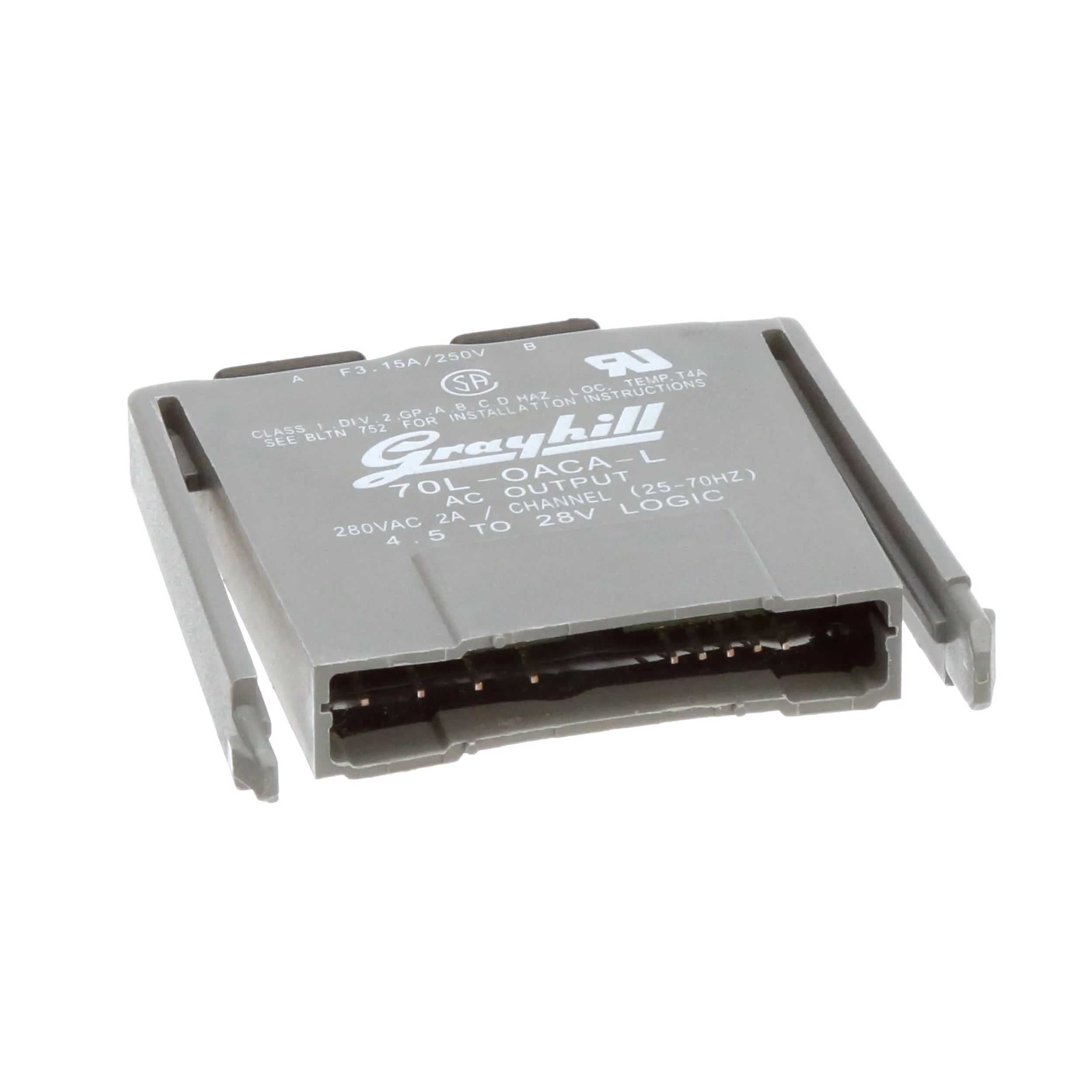

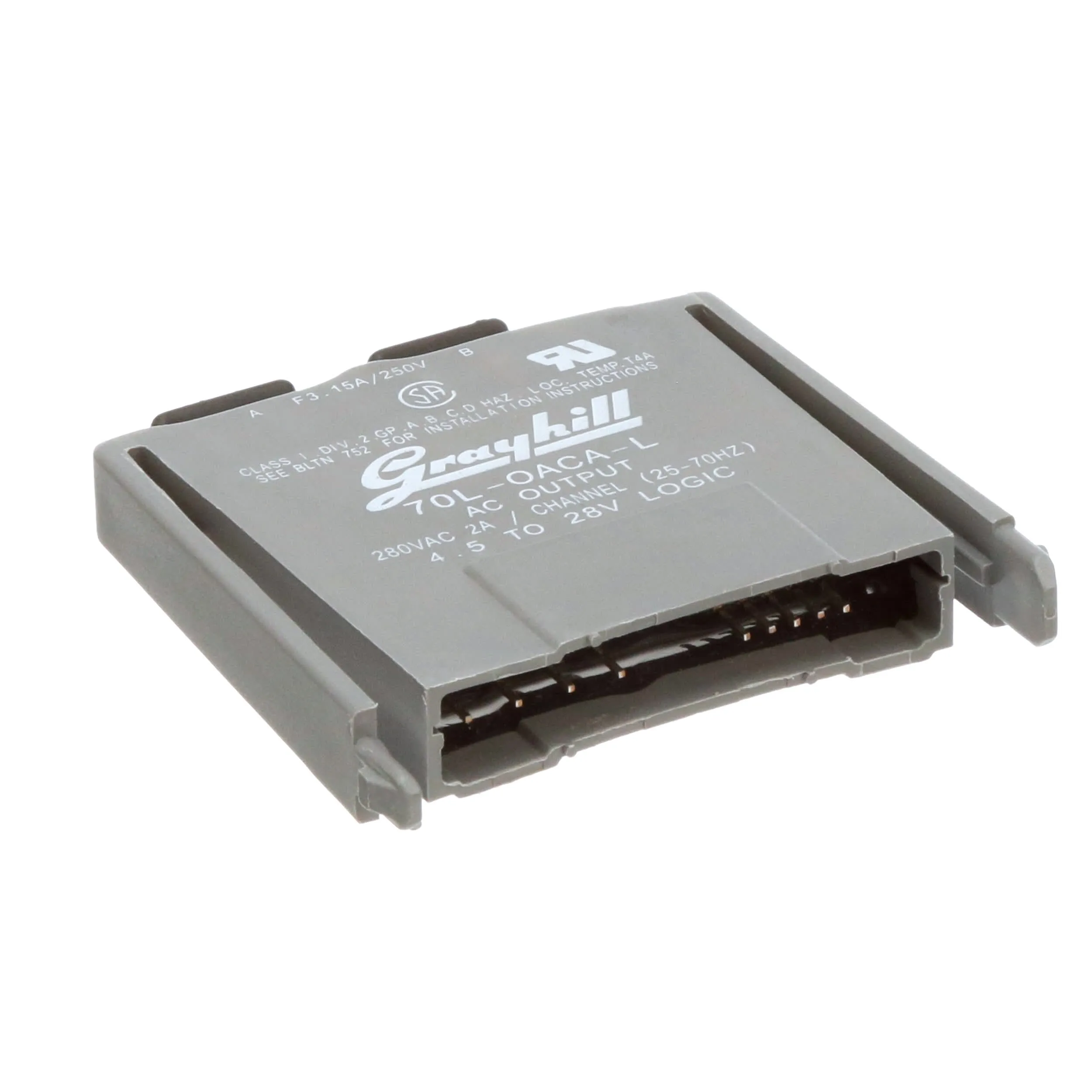

| Product Attribute | Attribute Value |
|---|---|
| Connection to Host | Board Mount |
| Input Current | 7 mA |
| Maximum Operating Temperature | 85 °C |
| Minimum Operating Temperature | -40 °C |
| Module Type | AC Output |
| Mounting Type | 5 Pin I/O Mounting Board |
| Output Current | 7 mA |
| Output Type | Digital |
| Primary Type | Control |
| Series | |
| Special Features | Optical Isolation |
| Standards | UL Listed, CSA Certified, CE Marked, TUV Certified, IEC68-2-6, IEC68-2-27 |
| Supply Voltage | 5 VDC |
| Temperature Operating Range | -40 to 85 °C |
| Time, Turn-Off | 8.33 ms |
| Time, Turn-On | 8.33 ms |
| Type | Output |
Overview
OpenLine® analog modules communicate serially with the controller. Each module has a separate transmit and receive line that operates at 115,200 baud with no parity bits, 8 data bits and 1 stop bit (115.2k, N, 8, 1). The command structure and responses for all modules are detailed in Bulletin No. 743. Each module has a microcontroller and non-volatile serial EEPROM memory. The calibration data is stored within the EEPROM, and may be changed using the appropriate commands and the 70L-PROG field calibration unit. The software provided with the calibration unit communicates with the modules through the serial port of a PC. Calibration equipment is not provided.
Digital Output Modules. AC output modules have zero voltage turn-on of the load to greatly reduce generated EMI and RFI. They are highly immune to electrical transients, and have built-in RC snubber networks for increased capability with inductive loads. DC output modules can operate DC loads over a wide voltage range and have built-in voltage spike protection.
Digital Input Modules. The output of these modules is a logic level signal which corresponds to the status of the device being monitored. A high level output signal indicates the load is off (the switch is open). A low level output signal indicates the load is on (the switch is closed). Input modules are designed to give fast, clean switching by providing filtering and hysteresis.
