| Product Attribute | Attribute Value |
|---|---|
| Accuracy | 0.25% |
| Approvals | RoHS |
| Connection Type | SIL |
| Cut Out, Panel | 1.63 L x 0.84 H in., 41.5 L x 21.4 H mm " |
| Depth | 0.272" (6.9mm) |
| Dimensions | 1.97 x 0.8 x 0.26 " |
| Dimensions, Cutout, Inches | 50 x 24.4 mm |
| Display Digit Height | 12.5 mm |
| Display Type | LCD |
| Function | Voltmeter |
| Measurement Range | 0 to 200 mVDC |
| Measuring Range | Maximum of 200 mVDC |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Panel Mount |
| Number of Digits | 3.5 Digits |
| Operating Temperature | 0 to 50 °C |
| Primary Type | Electronic |

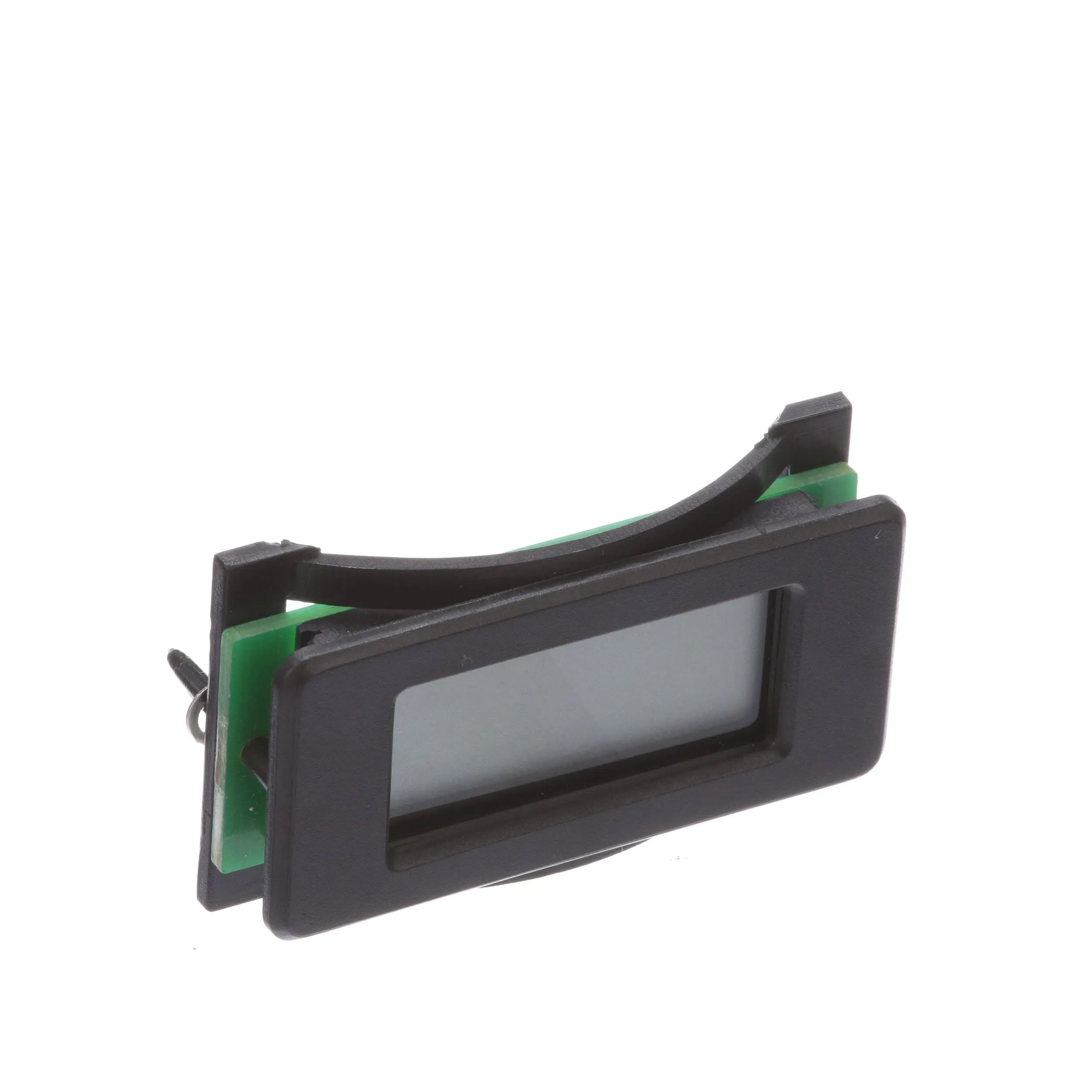

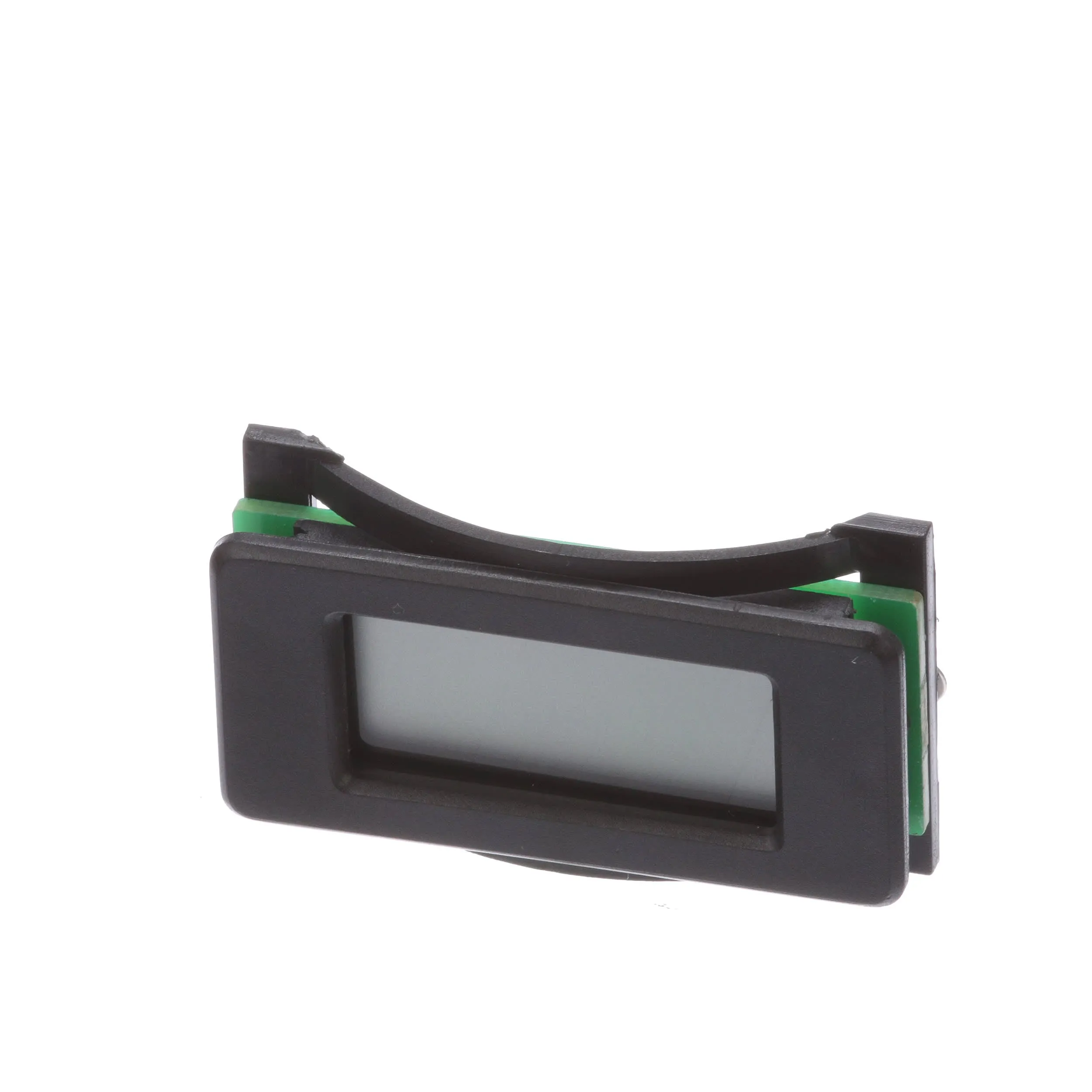

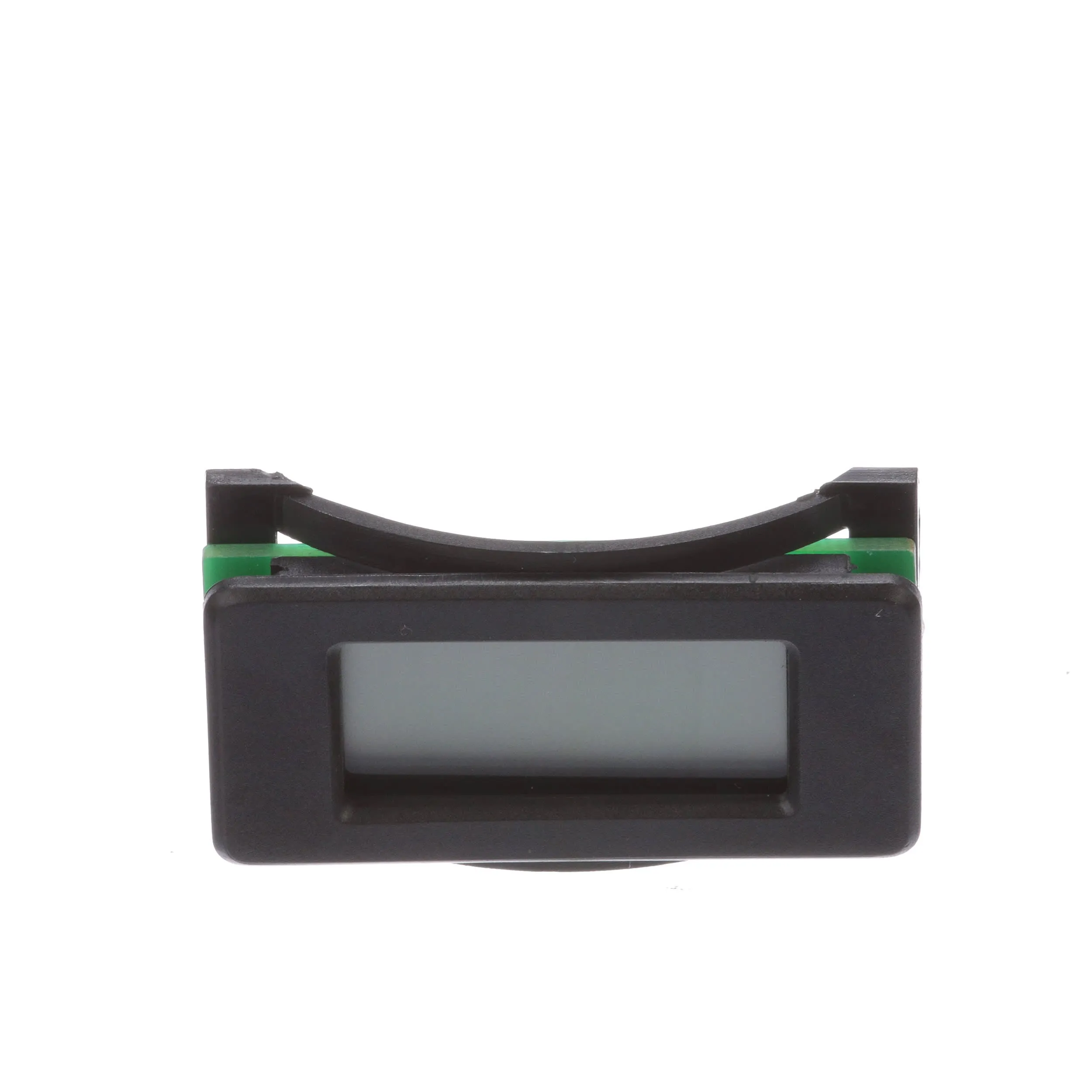

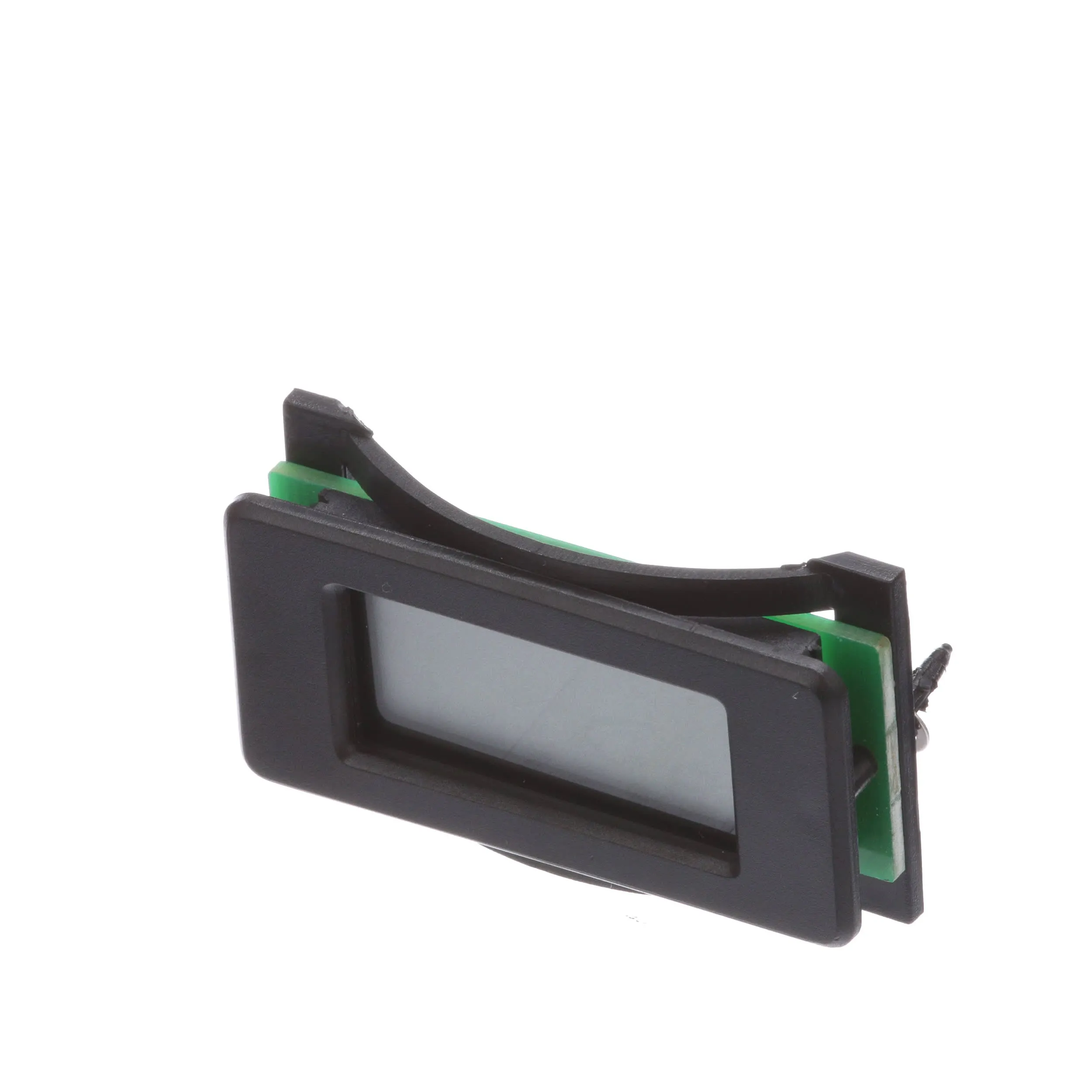

| Product Header | 3-1/2 Digit LCD Voltmeter Module |
| Series | |
| Supply Voltage | 7 to 12 VDC |
| Temperature Range | 0 to 50 °C |
| Temperature, Opening, Maximum | 50 °C |
| Termination | Pins |
| Type | Electronic |
Overview

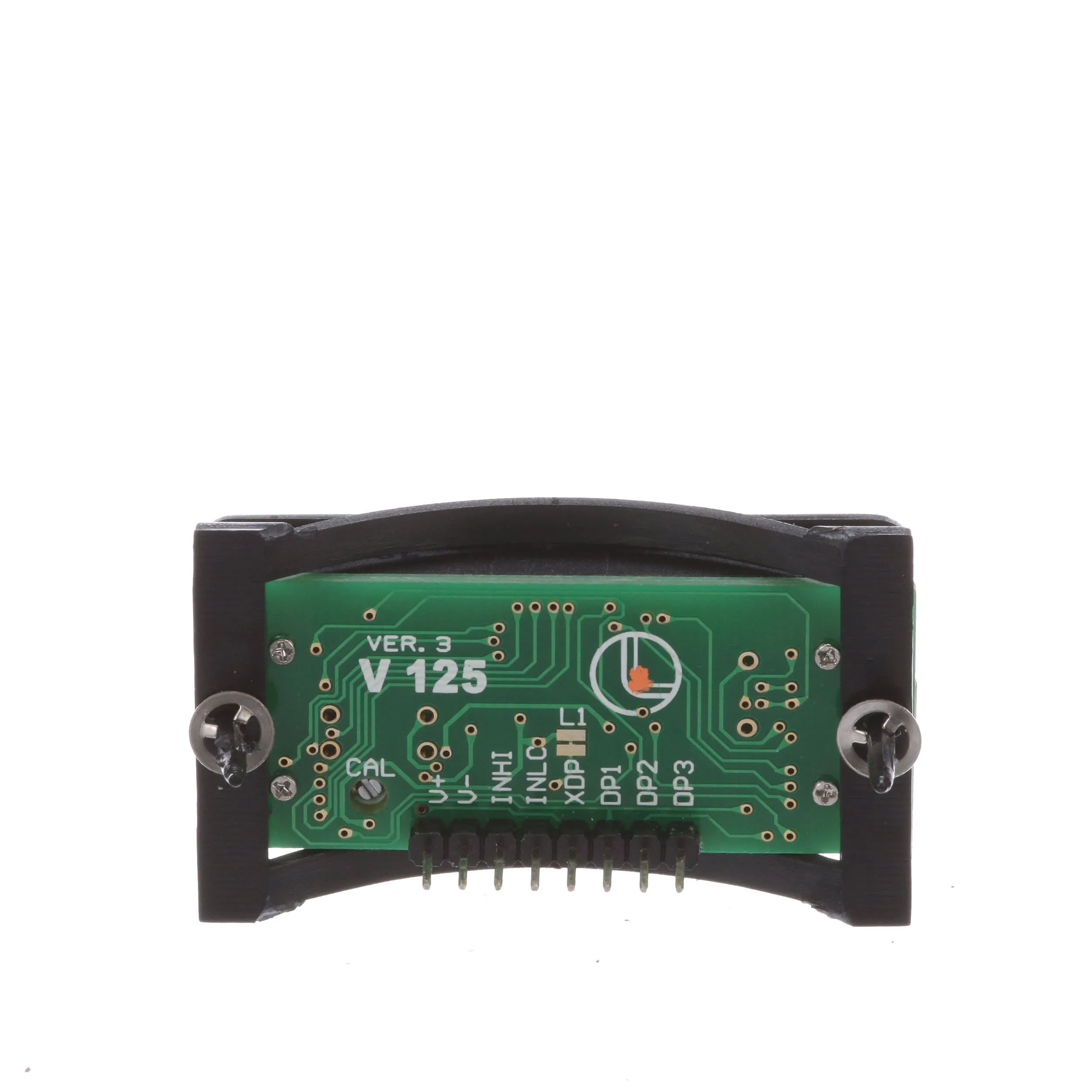

Provided in a compact DIL package, the OEM 1B, (a metal framed LCD meter) and OEM 1B-LED, (a potted LED meter with integral red filter) can be easily integrated into applications where space constraints exist. Both meters have on-board calibration adjustment. The OEM4-LED has 4 digits and three decimal places. It accepts a clocked serial bitstream which corresponds with the segments to be displayed, and a data enable input to latch the data onto the LEDs and up to 4 external LEDs. The V125 and V600 modules are 31⁄2 digit LCD displays with 7-12 VDC operation, a ±200 mVDC full scale reading and typical accuracy of 0.25 V (±3 counts). Both products are available in packs of 10 only, and are supplied with mounting bezel. V EVAL contains one of each module and a testing unit for product evaluation.
