| Product Attribute | Attribute Value |
|---|---|
| Input Type | Current, Voltage |
| Input, Range | 0 to 100, 0 to 500 A, V, mV |
| Maximum Operating Temperature | 65 °C |
| Minimum Operating Temperature | -20 °C |
| Module Type | Converter |
| Mounting Type | DIN Rail |
| Number of Channels | 2 |
| Output Type | Current, Voltage |
| Series | |
| Special Features | 3-Way Isolation af Analogue Signals, Over 100 Input & Output Analogue Conversion Combinations, Universal Conversion Module Inputs & Outputs Selected Via DIP Switch Settings |
| Standards | CE, EN 61326-1, IEC⁄EN 61010-1, UL Recognized Component |
| Supply Voltage | 11 to 36, 24 VAC, VDC |
| Temperature Operating Range | -20 to 65 °C |
| Termination | Screw |
| Type | Signal Converter |
Overview

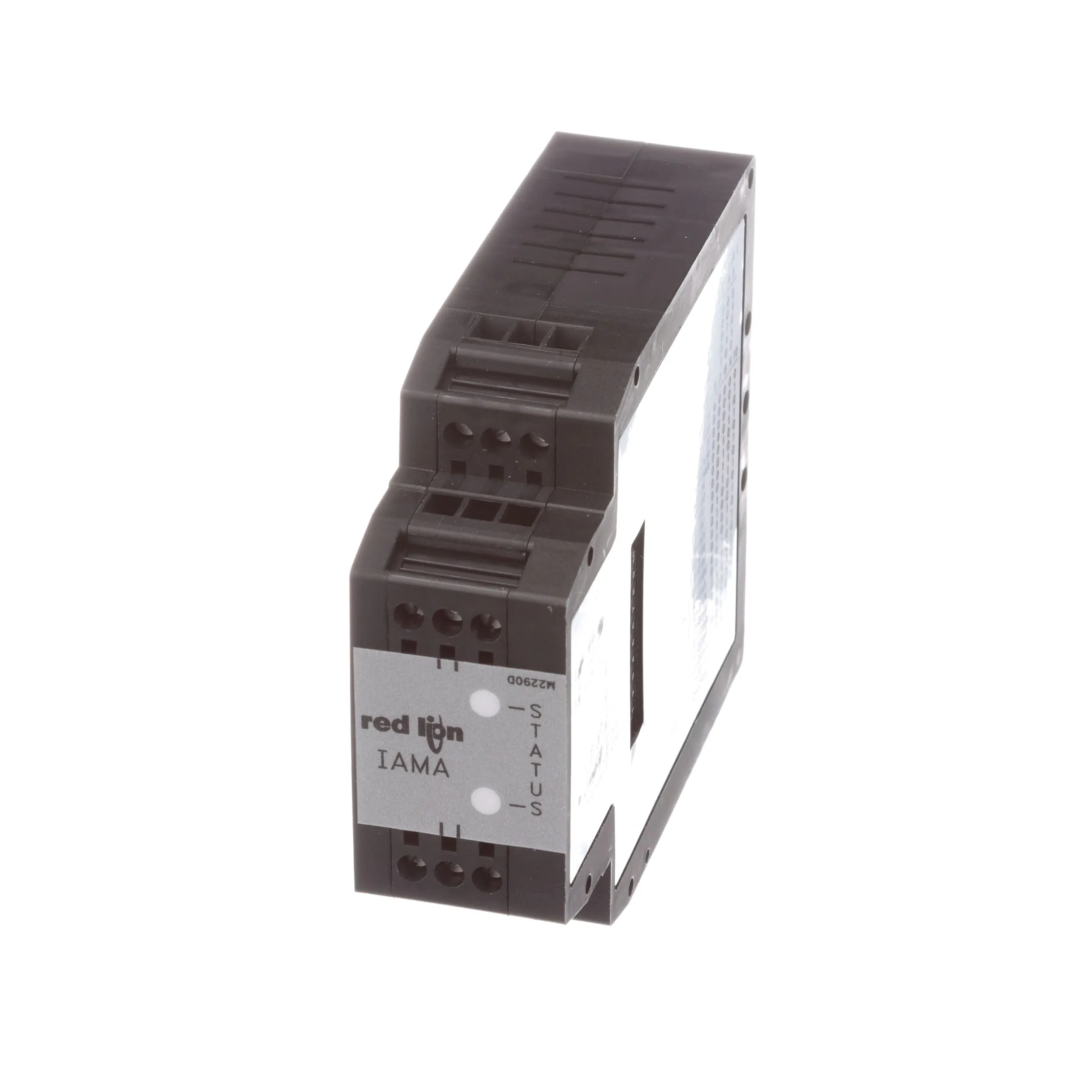

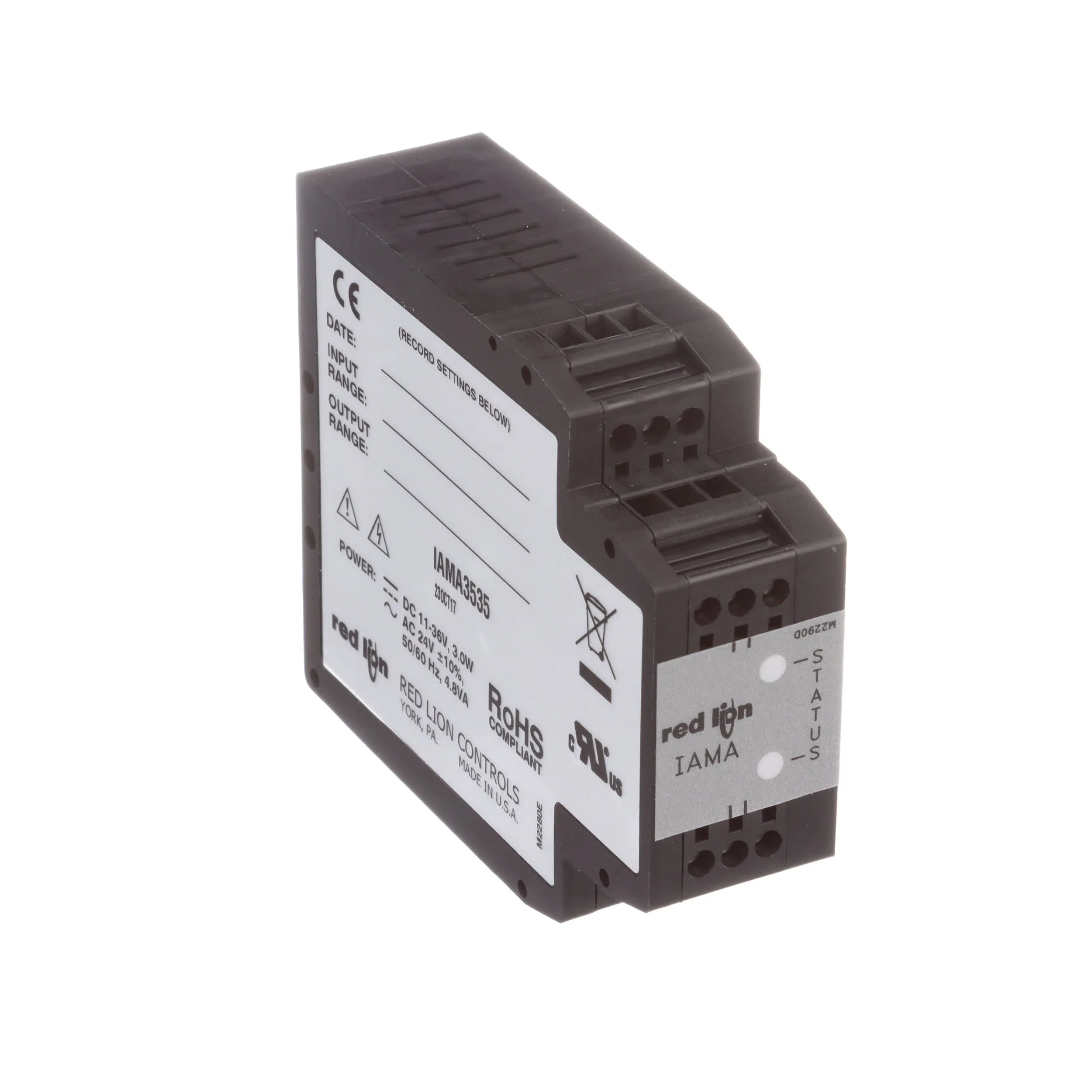

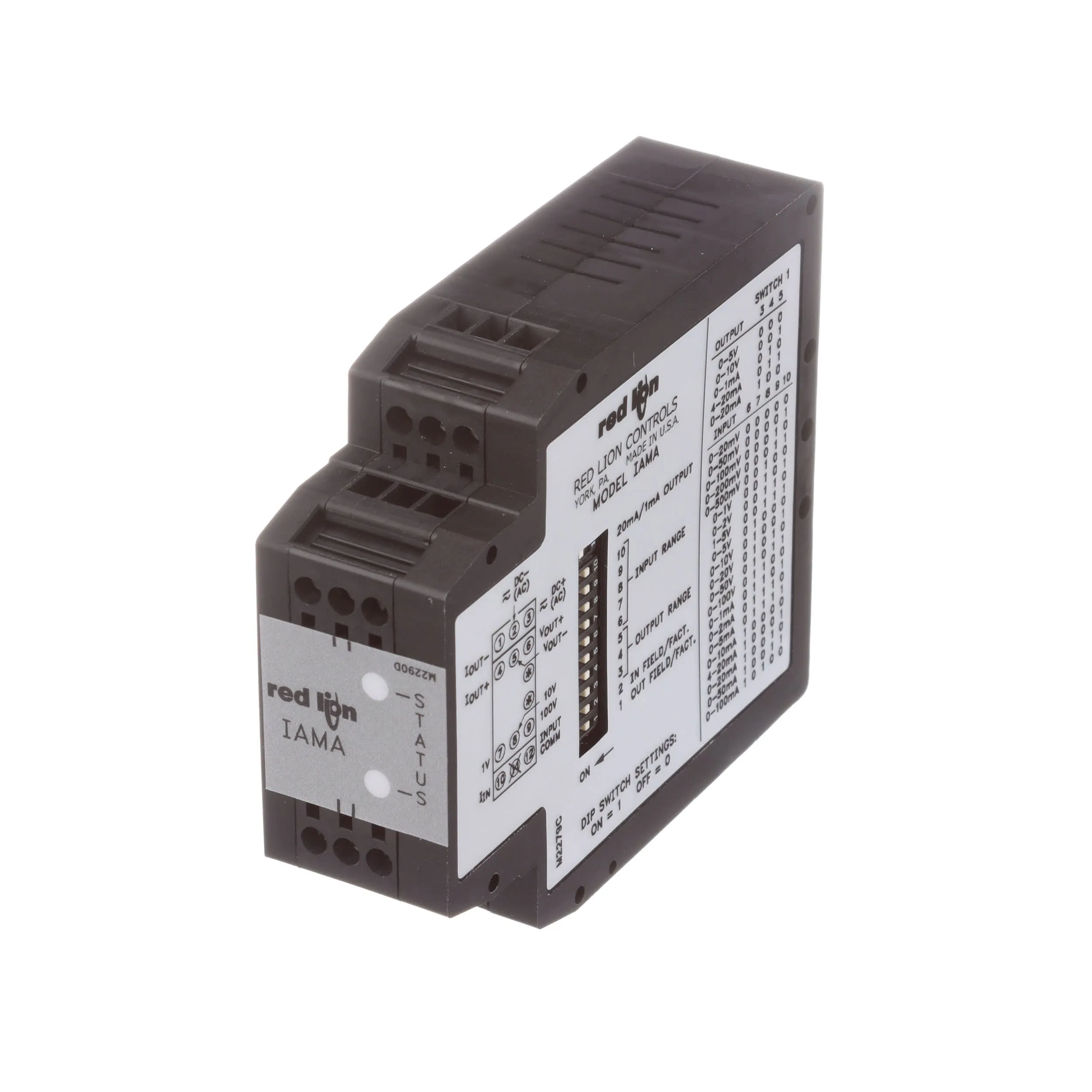

The IAMA Universal Signal Conditioning Module Series can isolate and convert over 100 combinations of analog signal ranges. The IAMA3535 converts and transmits signals linearly proportional to the input. DIP switch range selection eliminates the need to order and stock different modules for each input and output signal range, and allows quick and convenient setup for over 100 standard signal conversions. By utilizing the Field mode of calibration, the user can customize the input and output scaling for odd applications, including reversal of the output relative to the input. In addition to the conversion capabilities, the IAMA modules feature optically isolated Input/Output signal circuits and transformer isolated Power to Input, Power to Output circuits. The modules overall full scale accuracy typically exceed 0.05% depending upon range selection and scaling.
Features:
