Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XQ-298-RS |
| Connection Type | Miniature Plug |
| Insulation Material | Flexible Mineral |
| Jacket Material | 310 Stainless Steel |
| Maximum Operating Temperature | 2012 F (1100 C) |
| Minimum Operating Temperature | -40 F (-40 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056112005087 |
| Warranty | 3 Year Warranty |
Overview

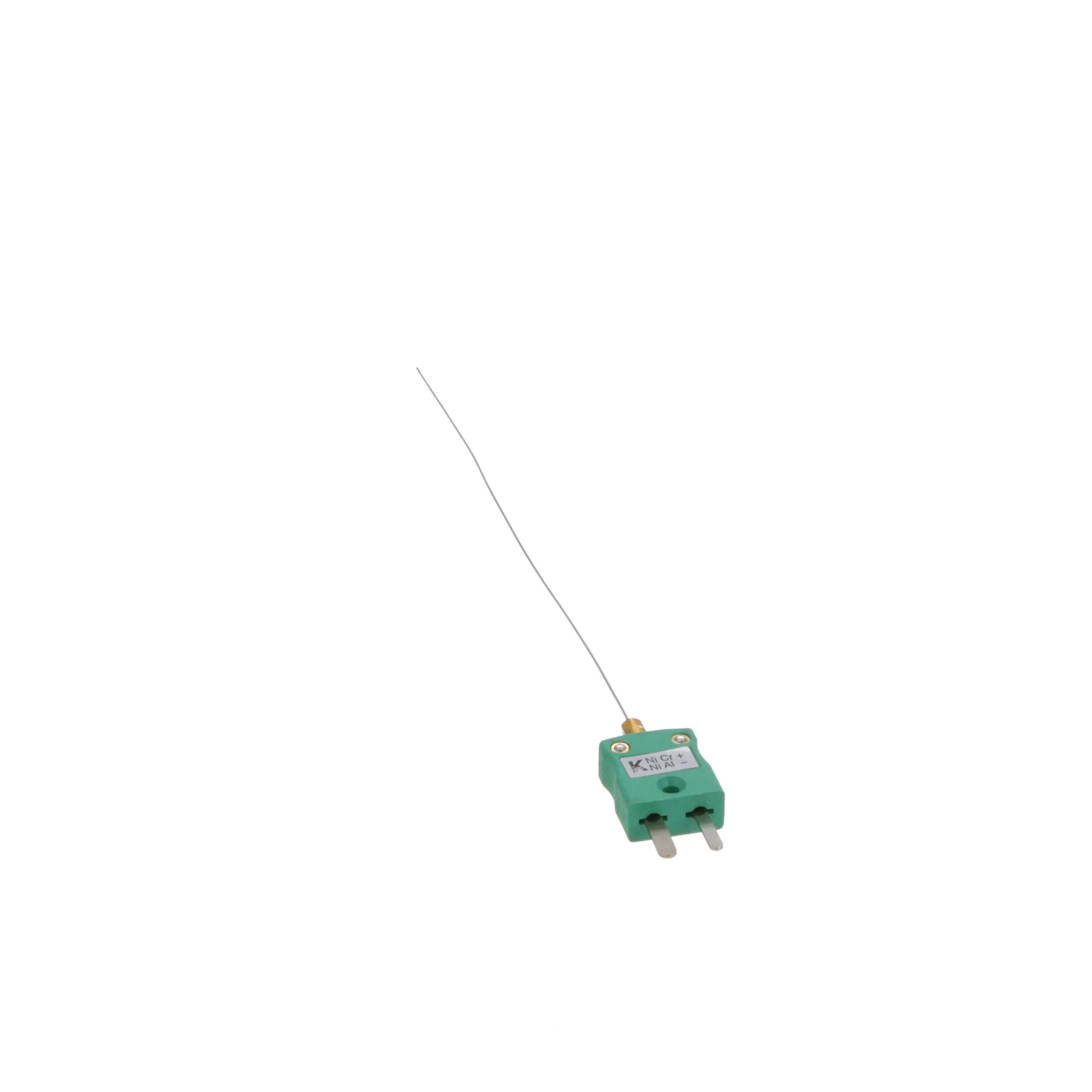

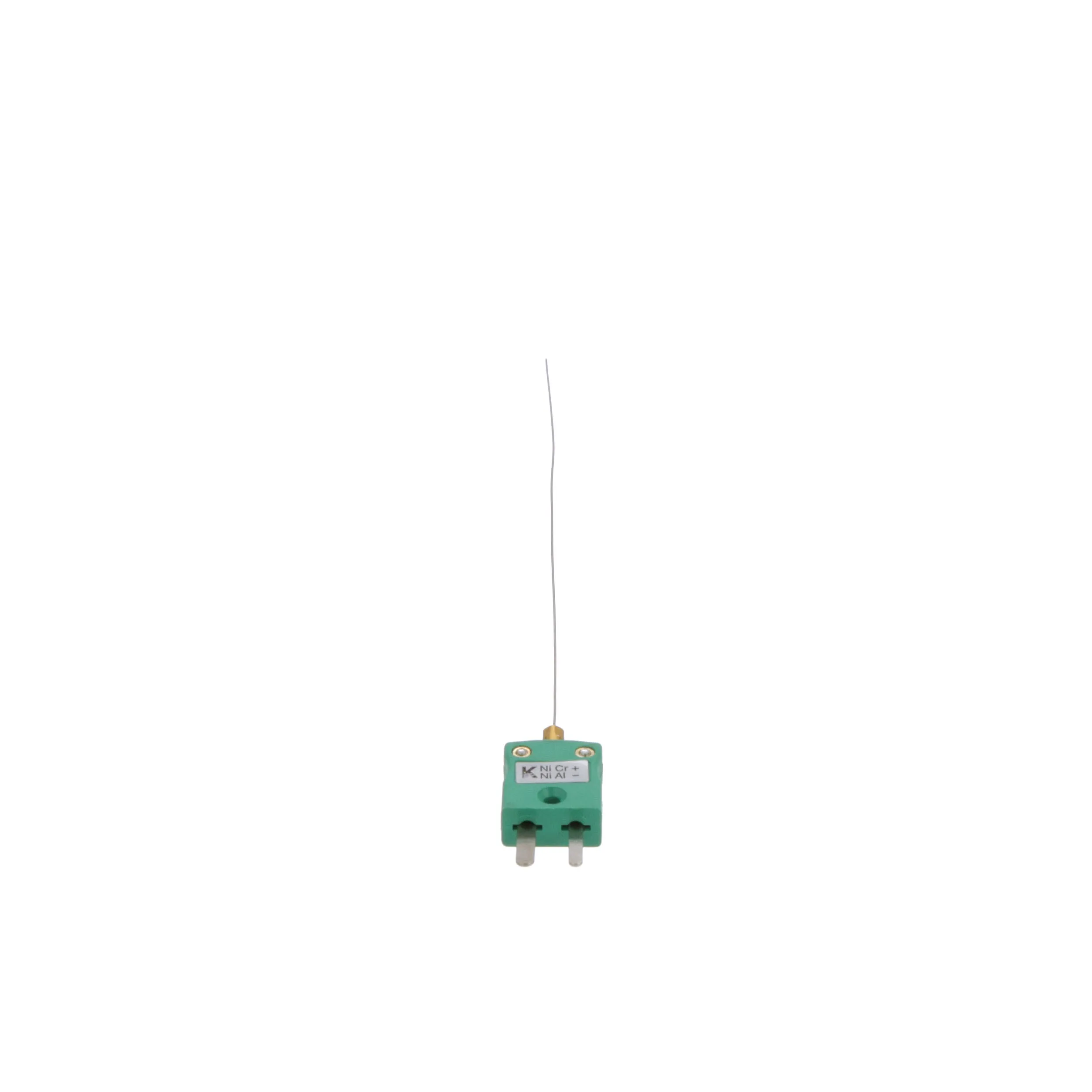

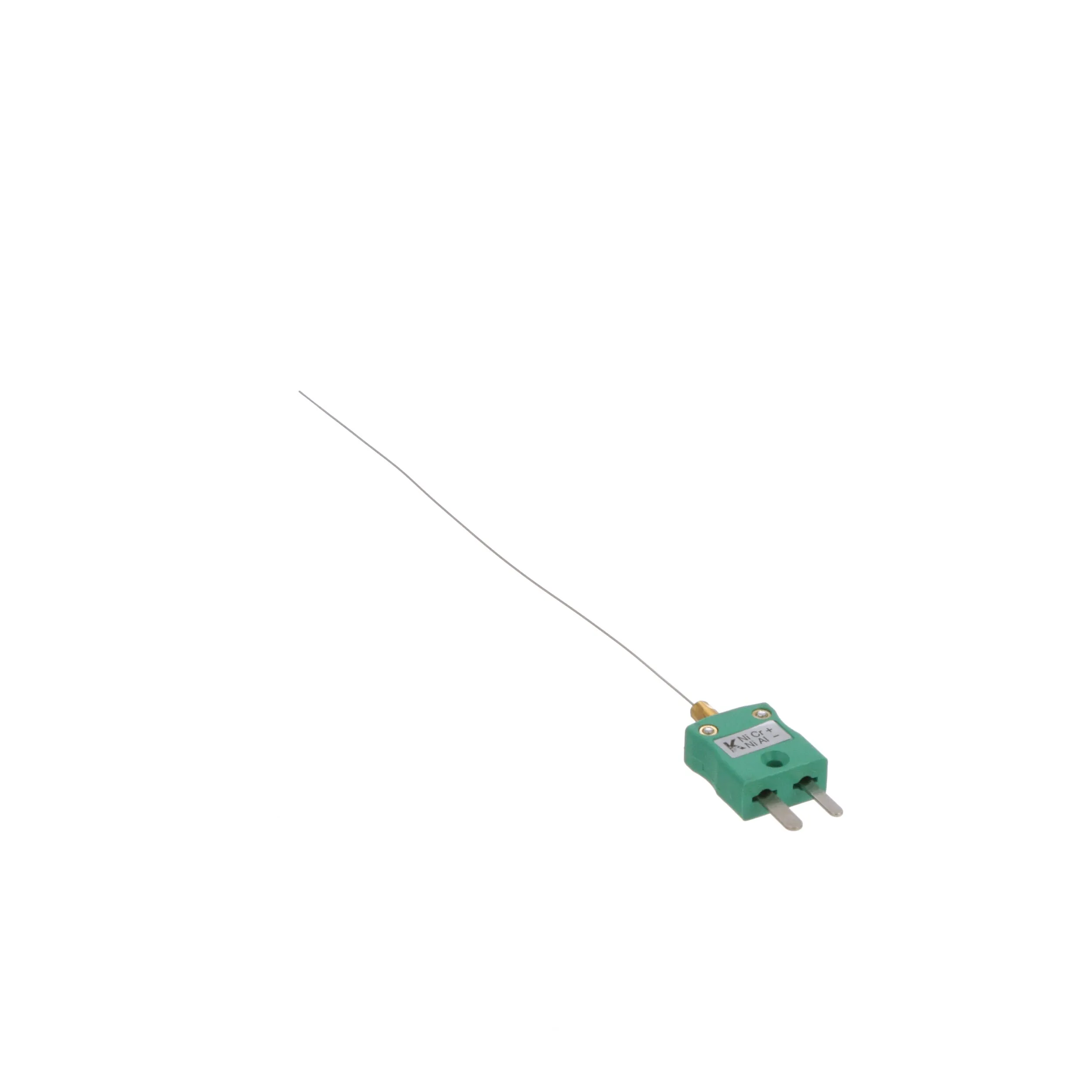

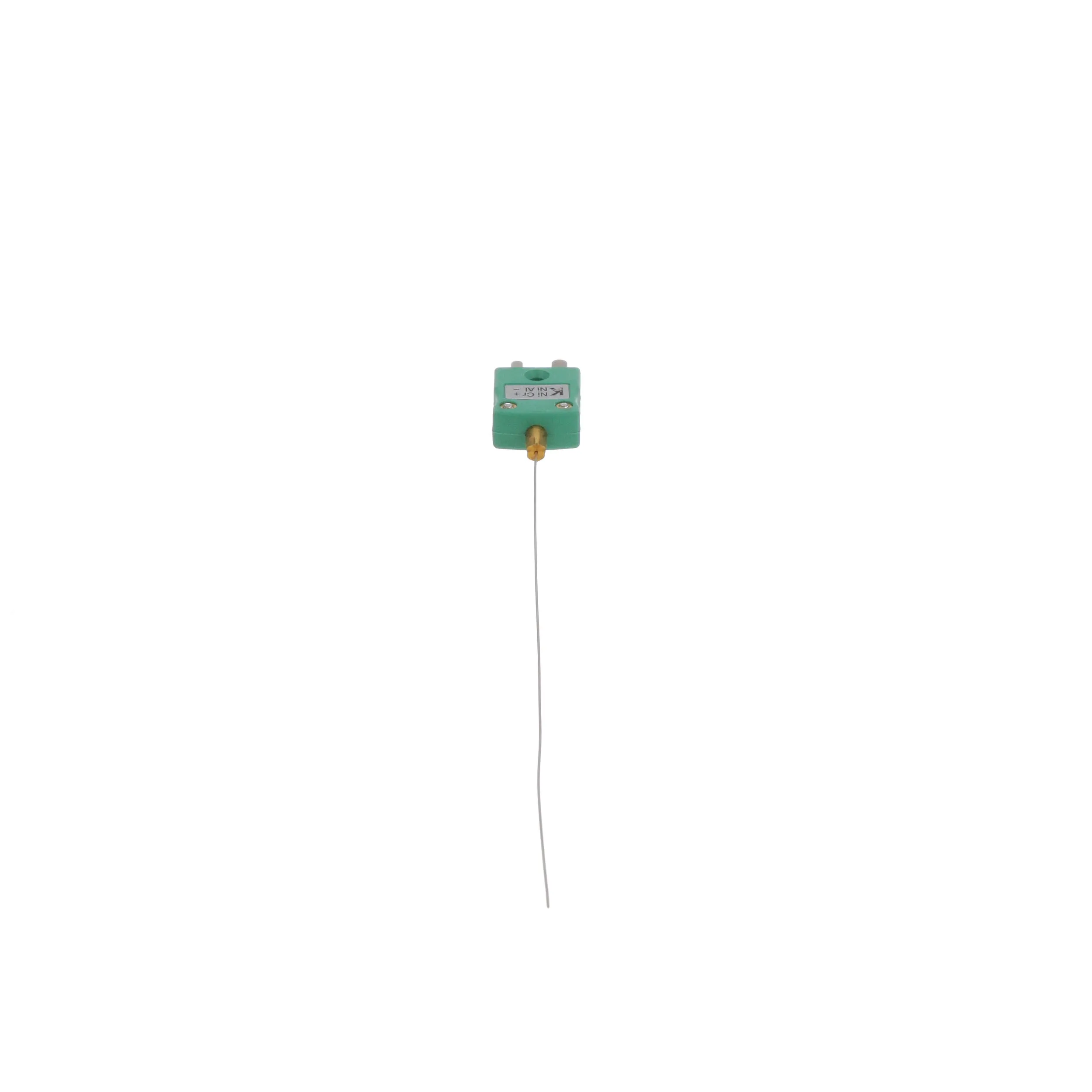

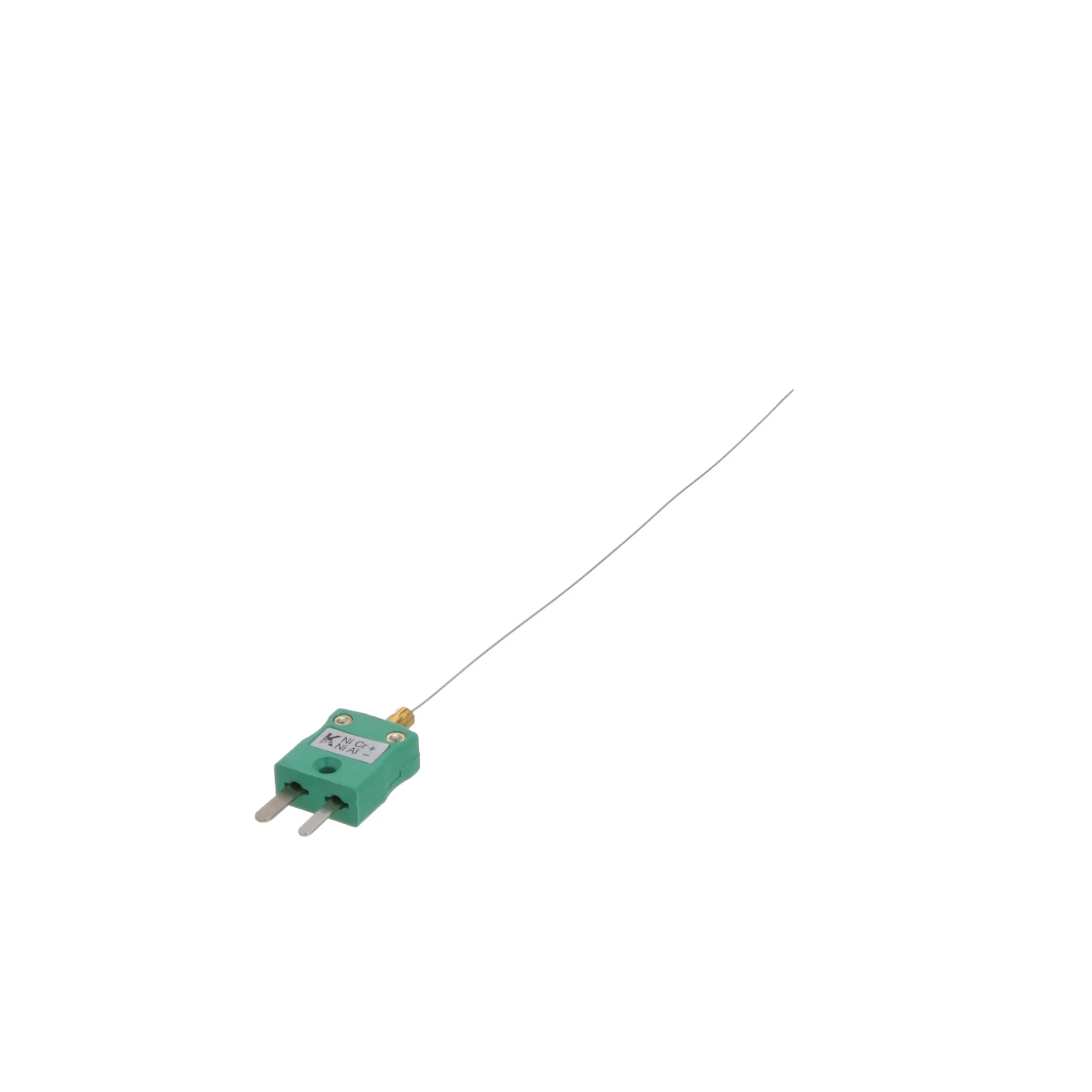

Type K Industrial Mineral Insulated Probe, Ungrounded Junction
Ungrounded Junctions: Suitable for corrosive media although the thermal response is slower. In some applications where more than one thermocouple connects to the associated instrumentation, insulation may be essential to avoid spurious signals occurring in the measuring circuits. The measuring junction is insulated from the outer sheath.
Miniature plug
