Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Standard Panel Socket |
| Alternate Mfr Part Number | XQ-590-RS |
| Color | Black |
| Connector Size | Standard |
| Connector Type | Fascia |
| For Use With | J Type Thermocouple |
| Housing Color | Black |
| Maximum Operating Temperature | 120 °C |
| Minimum Operating Temperature | -35°C |
| Mounting Type | Nylon Clip |
| Operating Temperature, Maximum | 120 °C |
| Operating Temperature, Minimum | -35°C |
| Shop By | Factory Choice |
| Standards | ANSI |
| Thermocouple Type | J |
| UPC Code | 5056112132295 |
Overview

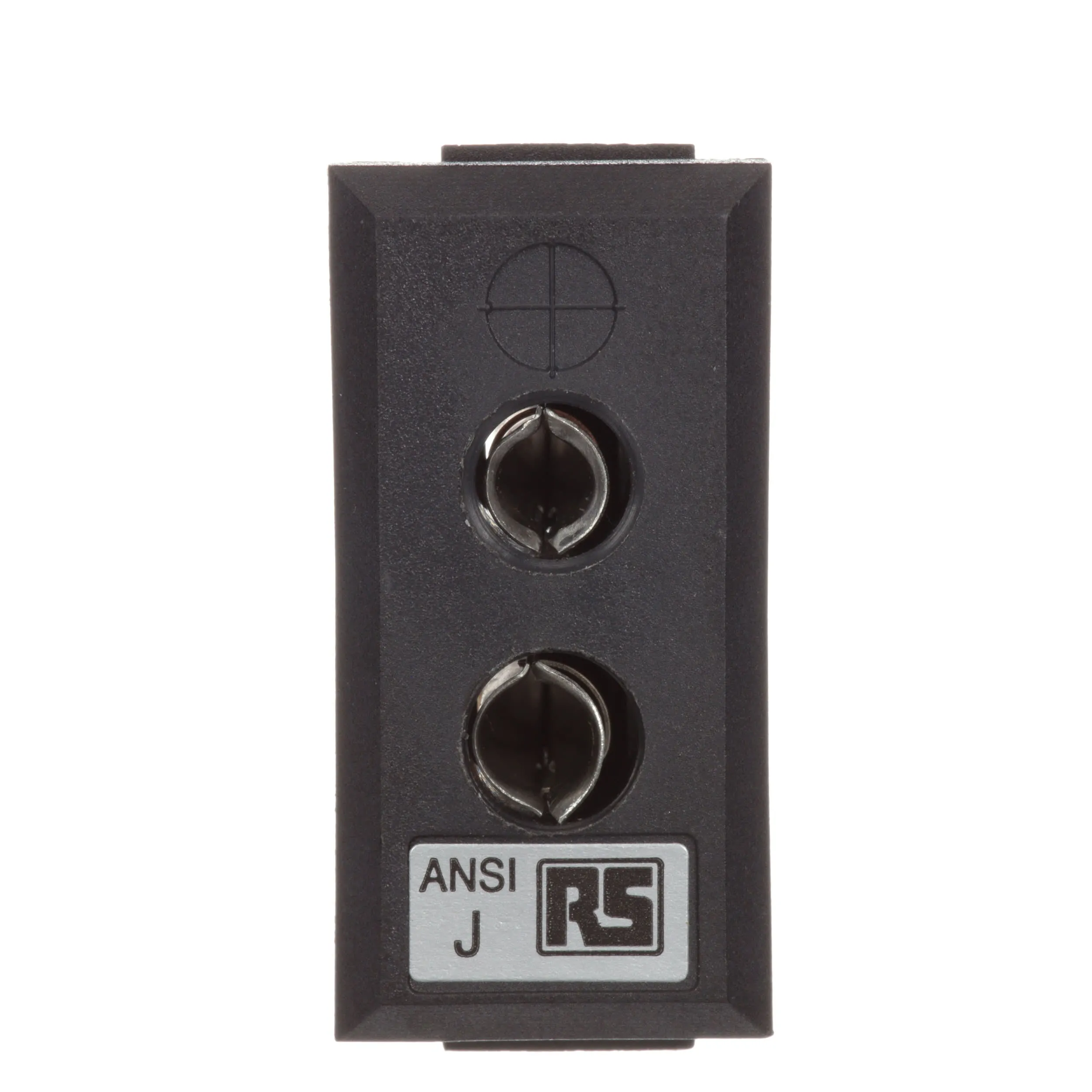

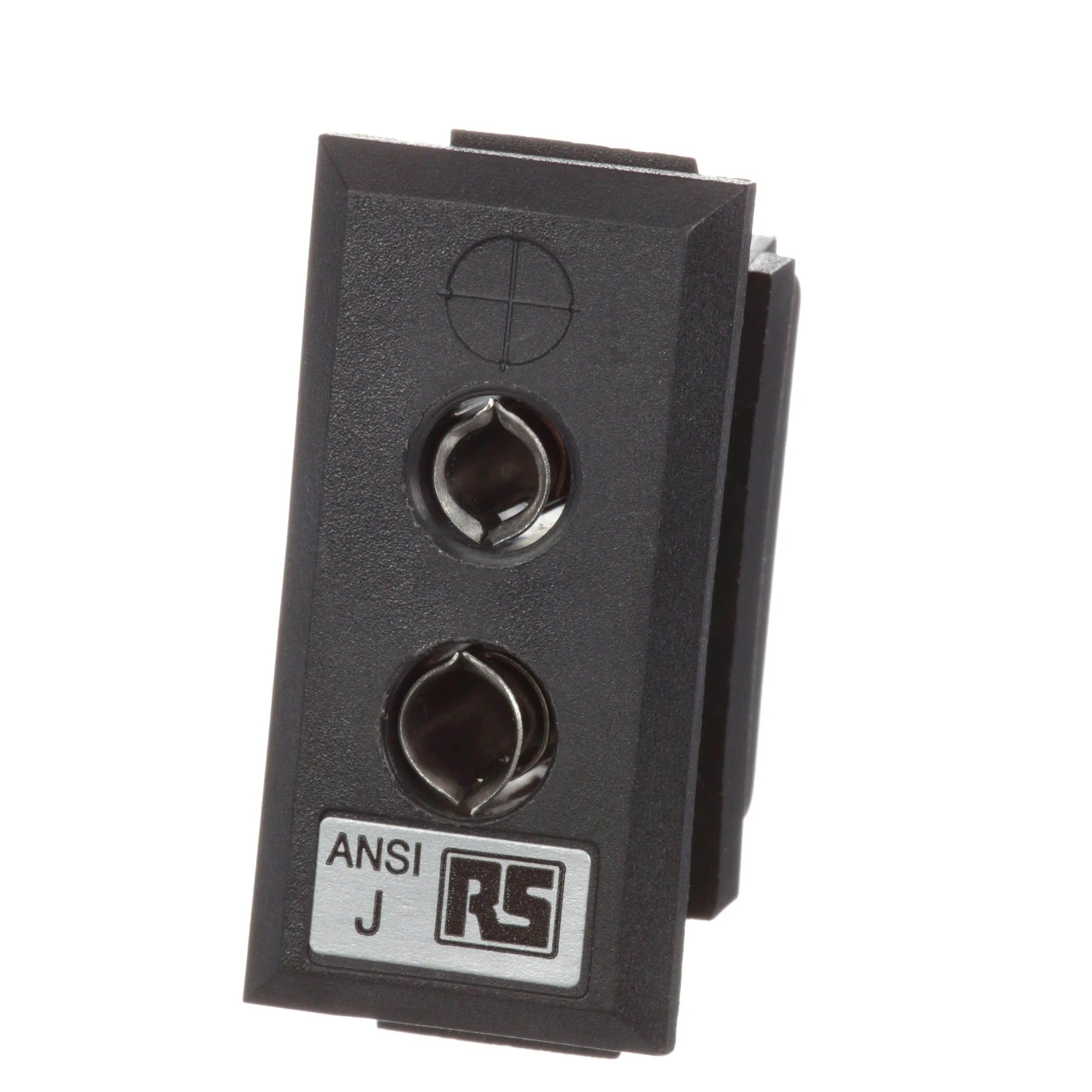

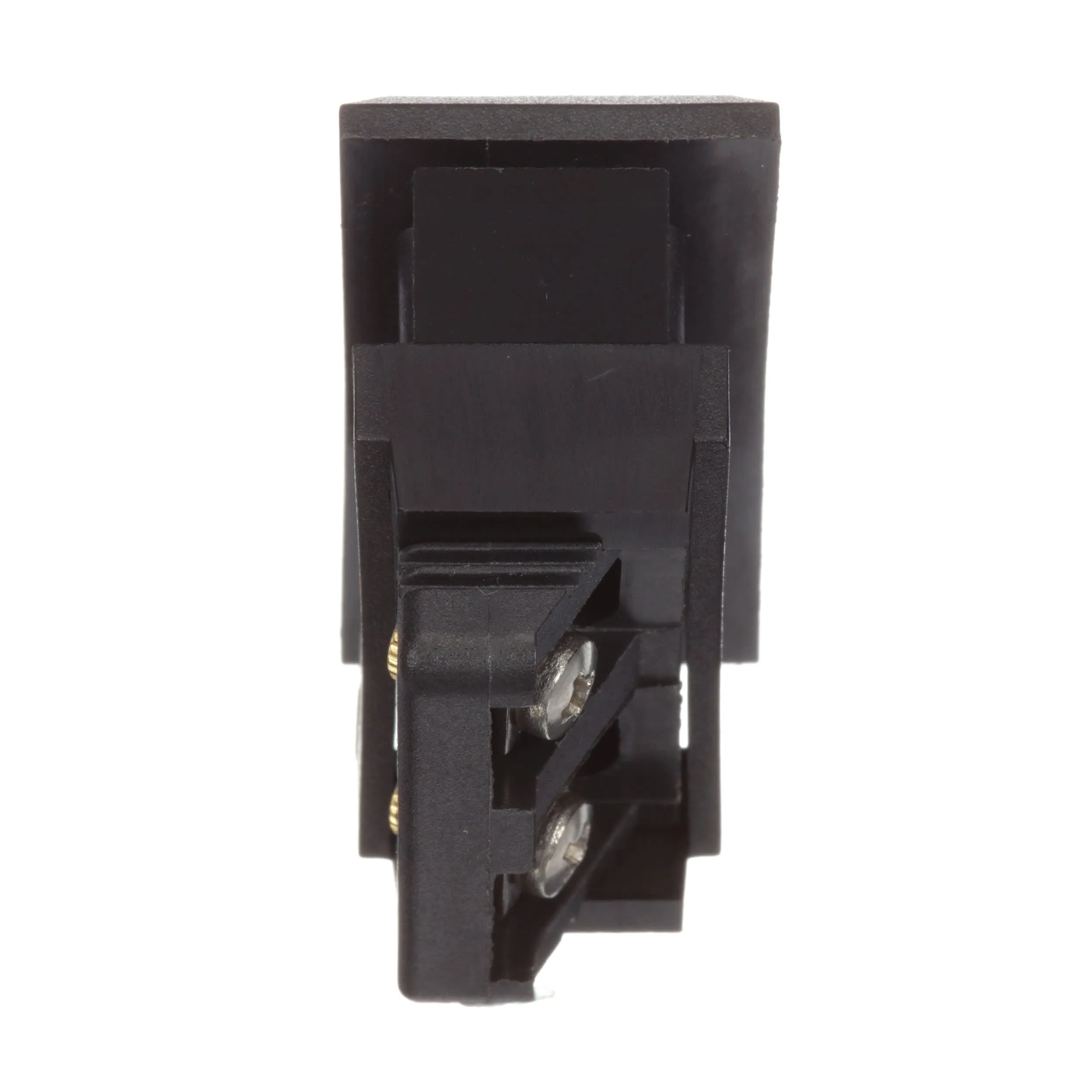

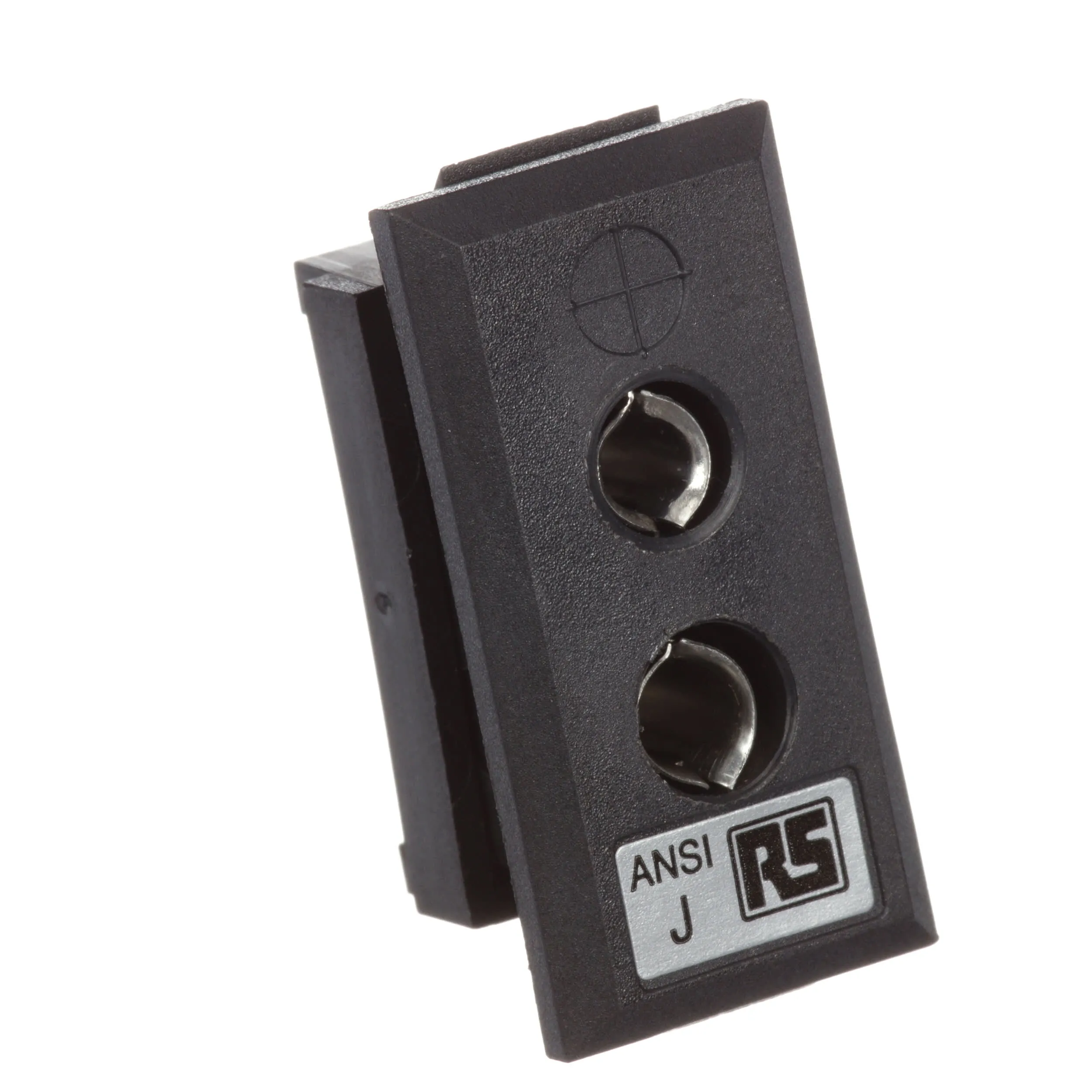

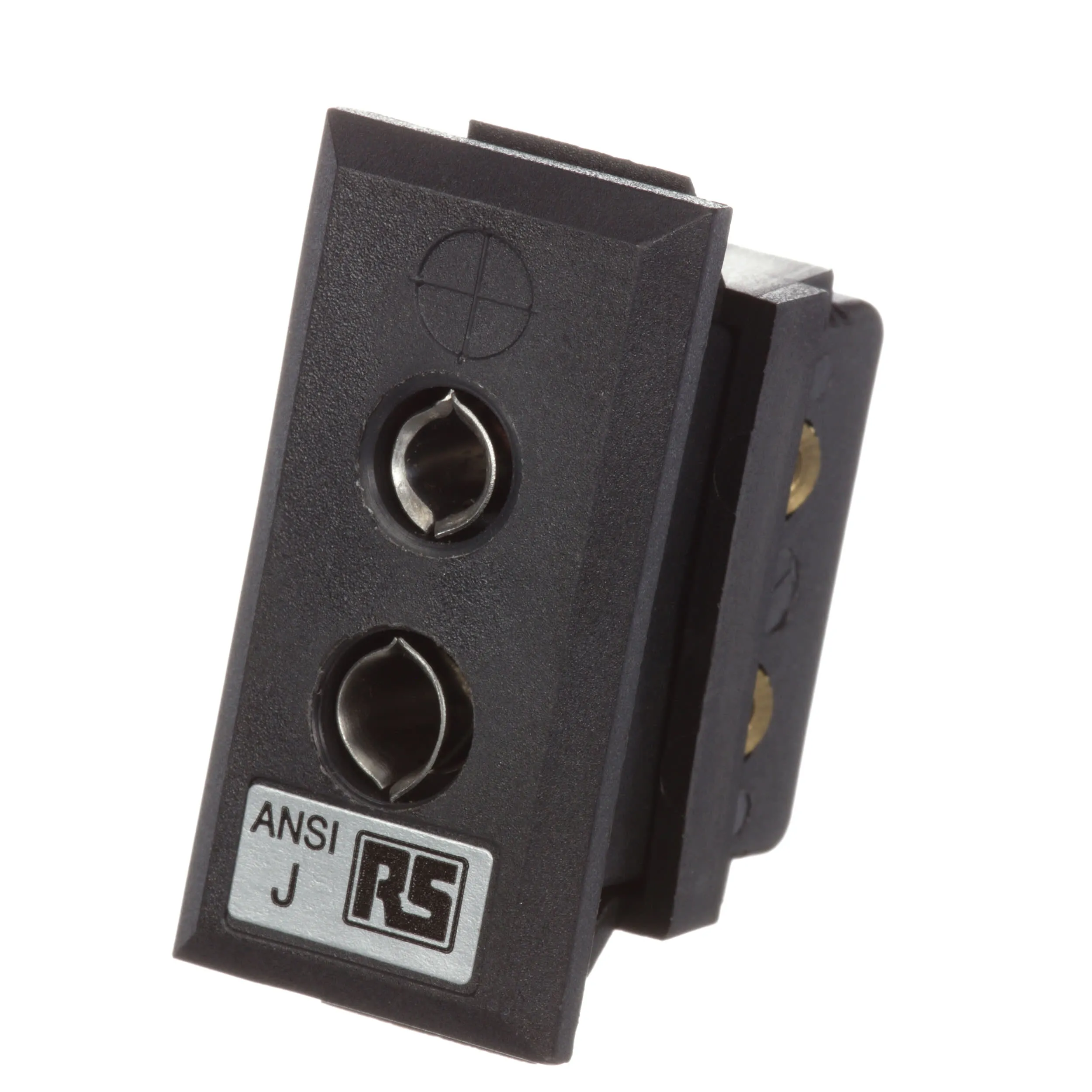

Standard Panel Sockets
Standard thermocouple fascia mounting sockets with clip are available in types K, J, T, E, N, R/S and B. All fascia mounting sockets are polarised by means of unequally sized pins.
Panel mounting
Accepts standard round pin plug connectors
Panel mounting Nylon clip for quick, simple fixing to panel
Color coded in accordance with ANSI specification
Maximum operating temperature 220 °C
