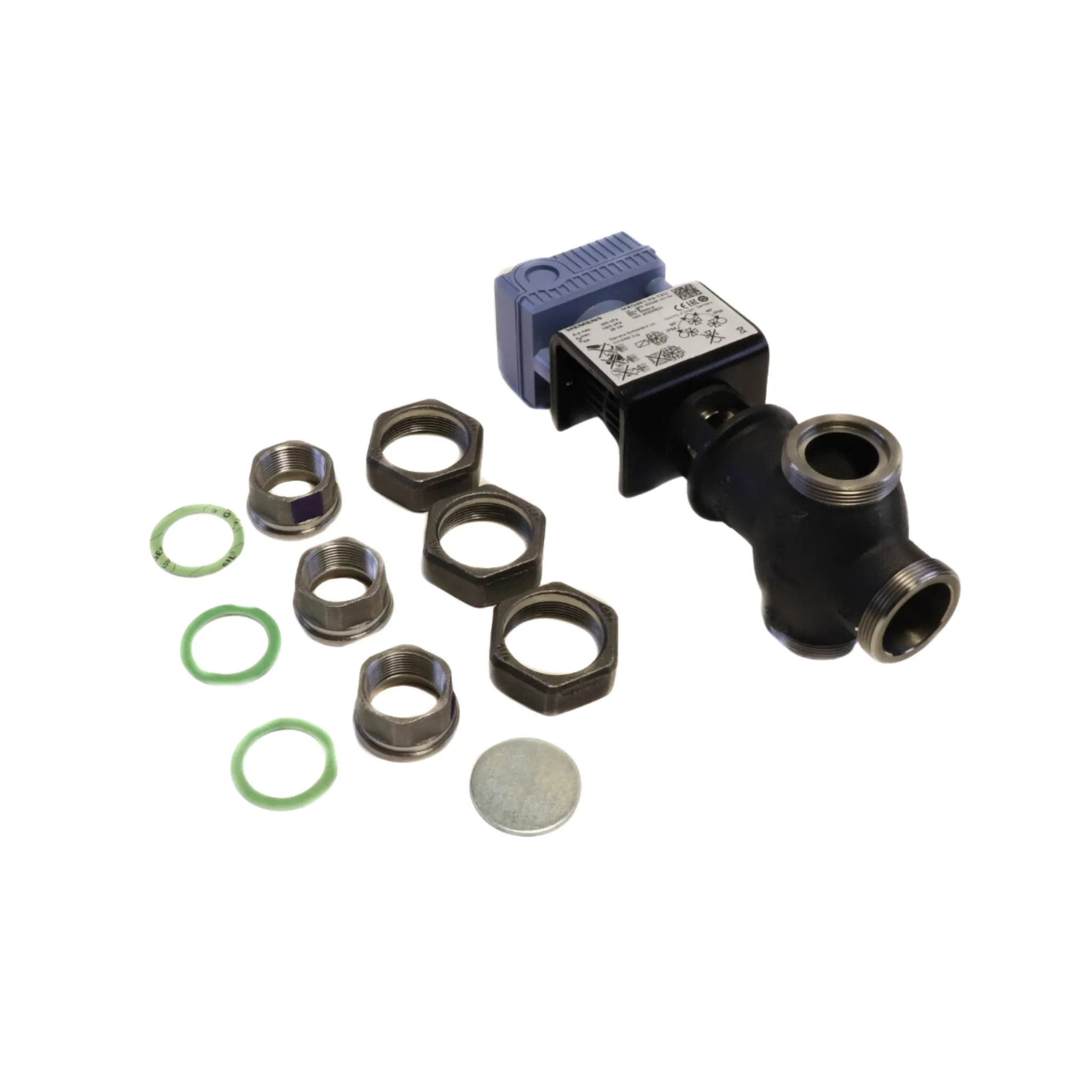

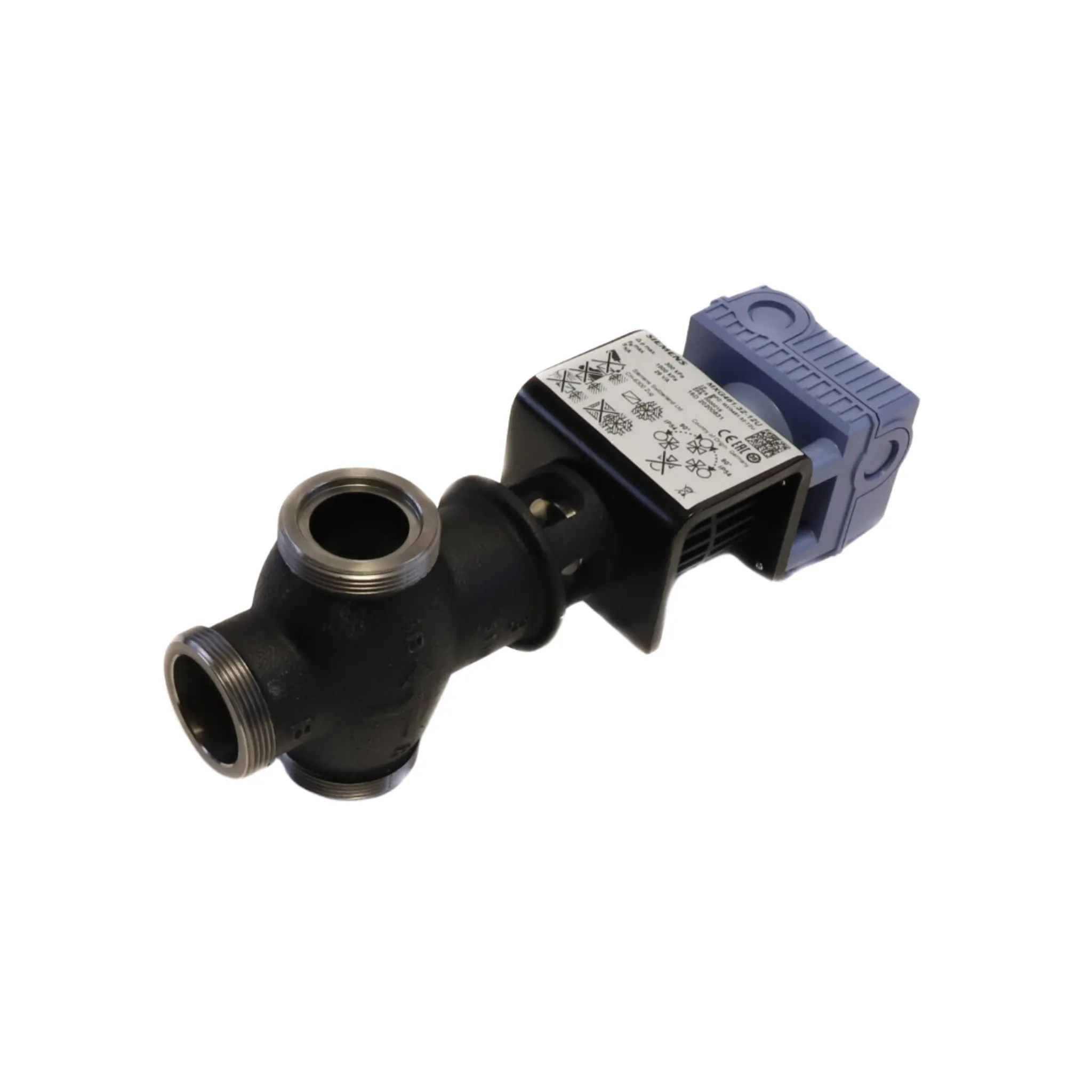

This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This 1-1/4" valve can be configured for straight-through or mixing applications and has a 14.0 Cv and 43 psi close-off. It has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and C-UL listed.

Specifications:

Manufacturer: Siemens Building Technology
Manufacturer Part Number: MXG461.32-12U
Product Type: Magnetic Control Valve
Valve Flow Co-Efficient: 14 CV
Permissible Operating Pressure: 1000 kPa; 145 PSI
Medium Temperature: 34 to 266 Degree Fahrenheit
Medium: Water
Dimensions: 6.15" x 17.1" x 6.85"
Weight: 15.29 Lb
