Features:

• Bandwidth: 350 MHz
• Channels: 4
• Memory Depth (Max.): 200 MPtS
• Real-time sampling rate up to 2 Gsa/s
• New generation of high speed display technology: Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode), Supports 256-level intensity grading and color display modes Record length up to 200 Mpts, Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out, Dropout, Pattern, Serial and Video
• Standard serial bus triggering and decoding, supports protocols IIC, SPI, UART, CAN, LIN. Optionally CAN FD, FlexRay, I2S, MIL-STD-1553B
• Includes Bode Plot and Power Analysis applications as standard.
• Display Large 10.1" Bright TFT LCD (1024 x 600)
• Connectivity USB Host, USB Device, LAN
• Warranty 3 Years

Standard Accessories:

• USB Cable
• 1 Passive Probe
• 4 Power Cord
• 1 Quick Start
• 1 Certificate of Calibration

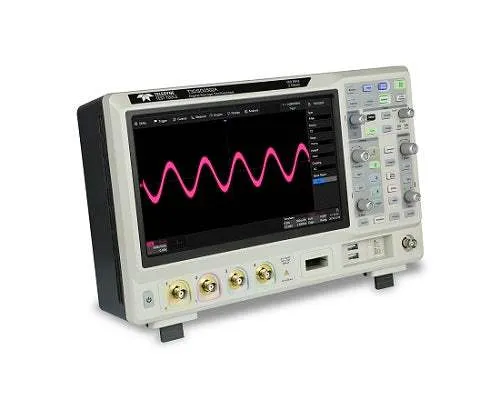

Teledyne Test Tools new T3DSO2000A Oscilloscopes feature two channel and four channel models with analog bandwidth options from 100 MHz to 500 MHz. Each model offers a maximum sample rate of 2 GSa/s, and a maximum memory depth of 200 Mpts in half channel mode. All models incorporates two 2 GSa/s ADCs and two 200 Mpts memory modules. When all channels are enabled, each channel has sample rate of 1 GSa/s and a standard record length of 100 Mpts. When only a single channel per ADC is active, the maximum sample rate is 2 GSa/s and the maximum record length is 200 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.
