12V DC Single camera module Copperhead Pro Standard Base Station with Neutrik OpticalCon and ClearCom Intercom. The Base Station is powered from an external 12VDC 4-Pin XLR power source and is equipped with OpticalCON fiber connectors. The unpowered Base Station houses 1 module to control one camera unit. This CopperHead Pro Base Station carries one channel of intercom between the Camera Unit and Base Station wired for ClearCom.

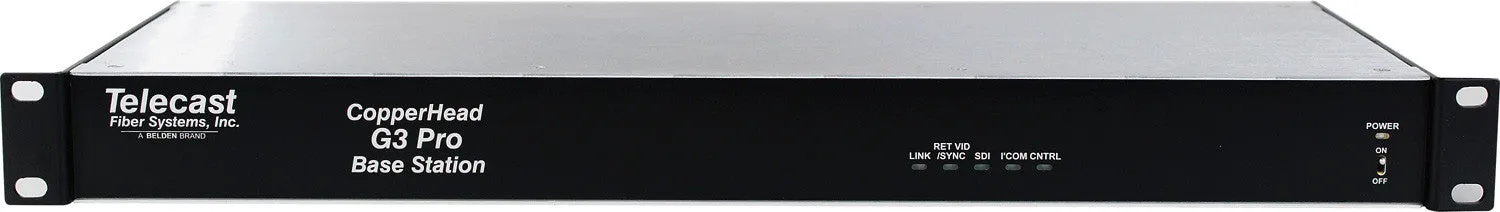

The CopperHead Pro Base Station is a lightweight 1RU frame located in your truck, control room, or "video village" position. Truly "plug-and-play," no adjustments are required. Front panel LEDs give easy-to-understand visual confirmation of link status with the CopperHead Camera Unit, as well as signal status of local input signals and signals coming down the fiber from the Camera Unit.

On the rear panel, standard connectors carry all video and intercom signals. A multipin DB15 connector provides Tally input and GPI output, as well as connectivity to a camera remote control panel (RCP), Use the camera maker's dedicated RCP or Telecast's RCP2050.

Neutrik OpticalCON Connectors
The hybrid OpticalCON system consists of a ruggedized all metal and dirt protected cable plug and chassis receptacle to increase reliability. This versatile connector is based on a standard optical LC-Duplex connection, insuring easy field servicing. In addition to use on tactical fiber, four integral copper conductors allow it to be used with SMPTE hybrid fiber cable to carry power.
